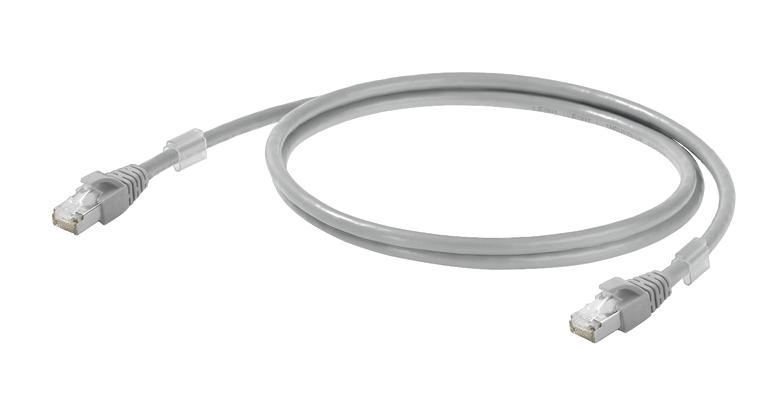

WEIDMULLER 1165940002 Industrial Ethernet Patch Cable
The Weidmuller IE-C6FP8LD0002M40M40-D is a high-performance industrial Ethernet patch cable designed for robust and reliable data communication in demanding environments. It utilizes Cat. 6A cabling, ensuring high-speed data transfer rates and reduced signal interference. The LSZH (Low Smoke Zero Halogen) jacket minimizes the release of toxic fumes in the event of a fire, making it suitable for use in enclosed spaces and safety-critical applications. This cable is commonly used in industrial automation, networking, and control systems to connect devices such as PLCs, switches, and sensors. Its compact size and ease of installation make it a versatile solution for various industrial connectivity needs.
WEIDMULLER 1165940002 Industrial Ethernet Patch Cable Specifications:
- Length: 0.2 m
- Net Weight: 25 g
- Operating Temperature Max: 60 °C
- Storage Temperature Max: 60 °C
- Operating Temperature Range: -20 °C...60 °C
- Installation Temperature Range: 0 °C...50 °C
- Minimum Operating Temperature: -20 °C
- Minimum Storage Temperature: -20 °C
- REACH SVHC: Lead 7439-92-1
- Current Carrying Capacity: 1 A
- PoE Compliance: conforming to IEEE 802.3at
- Operating Voltage: 48 V AC/DC
- Application Specific Communication: ANSI / TIA / EIA-568-B.2-10, ISO / IEC 11801:2002, EN50173-1:2007
- Connector Standard: IEC 60603-7-51
- Copper Diameter: 0.43 mm
- Strands: 7
- Cross Section: 4*2*AWG 27/7 - 4*2*0.1 mm²
- Insulation Cross Section: 1.04 mm
- Wire Core Arrangement: Twisted Pair
- Shielding: S/FTP
- Shielding Overlap: 60 %
- Sheath Diameter Min: 5.5 mm
- Sheath Diameter Max: 5.9 mm
- Cable Category: Cat.6A/ Class EA(ISO/IEC 11801 2010)
- UL Rating: 30 V AC/42.4 V DC
- Characteristic Impedance: 100 ± 15 Ω at 1–100 MHz
- Resistance Differential: 5 %
- Data Speed: 10 GBit/s
- Shield Attenuation: 60 dB upto 1000 MHz
- Separating Class: EN 50174-2 d
- Minimum Bending Radius (Once Only): 25 mm
- Minimum Bending Radius (Repetitive): 50 mm
- Flame Resistance: IEC 60332-1/UL 1581 FT2
- Connector Left: RJ45 IP 20
- Connector Right: RJ45 IP 20
- ETIM 3.0: EC001262
- ETIM 6.0: EC002599
- eClass 7.1: 27-06-18-01
- eClass 9.0: 27-06-03-08
- ETIM 5.0: EC000830
- eClass 6.2: 27-06-18-01
- eClass 8.1: 27-06-18-01
- eClass 9.1: 27-06-03-08
