WEIDMULLER 1039700000 Industrial Terminal Block

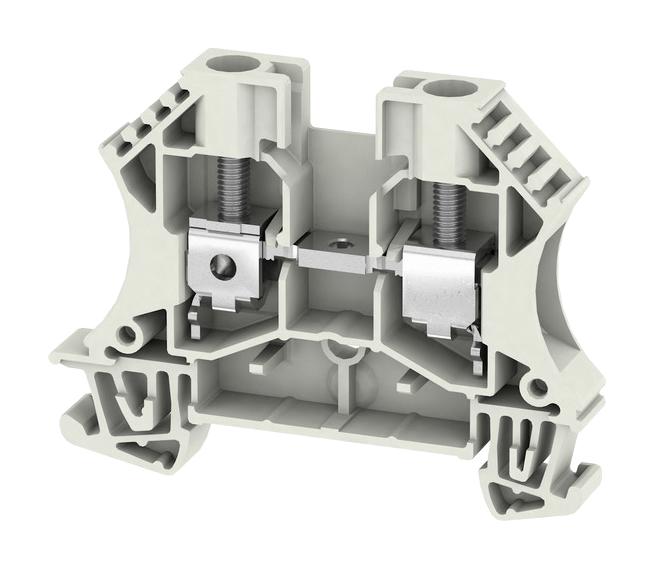

The WDU 6 WS is a high-quality, screw-connected terminal block designed for reliable wire connections in industrial electrical systems. It features a 6 mm² wire cross-section capacity, with a maximum voltage of 800 V and current rating of 41 A. Constructed from flame-retardant Wemid material with UL 94 V-0 rating, it offers excellent durability and safety. The terminal block includes two clampable conductors, is explosion-tested, and suitable for DIN rail mounting. It complies with IEC, UL, CSA, and ATEX standards, ensuring versatile and safe application in various environments.
WEIDMULLER 1039700000 Industrial Terminal Block Specifications:
- Width: 7.9 mm (0.311 inch)
- Height: 60 mm (2.362 inch)
- Depth: 46.5 mm (1.831 inch)
- Depth including DIN rail: 47 mm
- Material: Wemid
- Flammability Rating: UL 94 V-0
- Operating Temperature Range: -25°C to 55°C
- Maximum Voltage: 800 V
- Rated Current: 41 A
- Wire Cross Section: Max 6 mm²
- Clamping Points per Level: 2
- Number of Potentials: 1
- Mounting Type: Snap-on
- Explosion-tested version: Yes
- Certification: IECEx, ATEX, UL, CSA
- Connection Type: Screw connection
- Wire range for clamping: 0.5 mm² to 6 mm²
- Tightening Torque: Max 1.6 Nm, Min 0.8 Nm
Buy the Buy Weidmueller WDU 6 WS Part Number 1039700000 Online
Purchase the Weidmueller WDU 6 WS terminal block online today for reliable, safe, and efficient electrical connections in industrial systems. Designed to handle 6 mm² wires with a maximum voltage of 800 V and current of 41 A, it’s ideal for various applications. Constructed from flame-retardant Wemid material, it features a robust screw connection, is explosion-tested, and compatible with DIN rail mounting. Ensure operational safety and compliance with international standards by ordering now and enhance your electrical infrastructure with trusted quality.
Buy Weidmueller WDU 6 WS now and experience unmatched reliability and performance in industrial wiring solutions.
