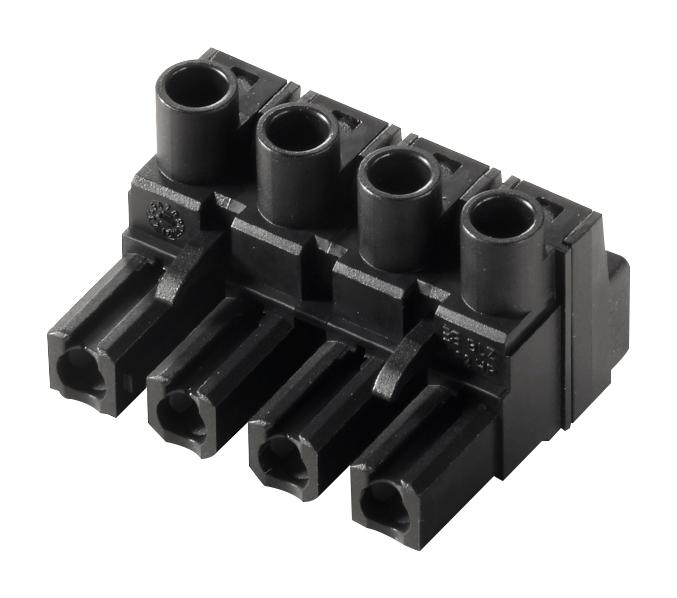

WEIDMULLER 1059600000 Power PCB Connector
The OMNIMATE Power series BL/SL 7.62HP female PCB connector features a 7.62mm pitch with 4 poles, specified for low-voltage power applications up to 630V and 29A. It offers a robust clamping yoke connection designed for quick and secure wiring, suitable for UL 600V and IEC 630V standards. Made from durable PBT with a black color, it is designed for temperature ranges from -25°C to 100°C, with a rated cross-section of 2.5 mm² and compatible with AWG 28-12 wires. Its compact size and compliance with safety standards make it ideal for power distribution and device interconnection.
WEIDMULLER 1059600000 Power PCB Connector Specifications:
- Pitch: 7.62 mm (0.3 inch)
- Number of Poles: 4
- Rated Voltage: 630 V (IEC), 600 V (UL)
- Rated Current: 29A (IEC), 20A (UL)
- Wire Cross-Section: AWG 28-12, Min. 0.08 mm², Max. 4 mm²
- Clamping Range: 0.2 mm² to 4 mm²
- Material: PBT, Black, UL 94 V-0
- Contact Material: Copper alloy, Tinned surface
- Contact Surface: 4-8 μm Sn hot-dip tinned
- Temperature Range: -25°C to 100°C
- Storage Temperature: -25°C to 55°C
- Operating Temperature: -60°C to 100°C
- Insulation Resistance: 210 MΩ
- Certifications: UL, IEC, RoHS Compliant
- Max. Touch Safety: According to IEC 68 100-5-1
- Tightening Torque: 0.4 to 0.5 Nm
- Clamping Screw: M25
- Tear Out Force: 8N per pole
- Push-in Force: 10N per pole
Buy the Weidmueller 1059600000 – Reliable Power PCB Connector for Industrial Applications
Order the Weidmueller Power PCB connector online today—designed for reliable power distribution in industrial and automation systems. Featuring a robust 4-pole design with a 7.62mm pitch, it ensures secure and quick connection with screw-clamp terminals suitable for wire sizes AWG 28-12 and 0.2 to 4 mm² cross-sections. Made from high-quality PBT with a durable tinned copper contact surface, it operates efficiently across -25°C to 100°C. Certified for UL and IEC standards, this connector guarantees safety, durability, and compliance for power distribution in demanding environments.
Get Weidmueller 1059600000 today—built for secure power distribution and long-lasting durability in industrial environments.
