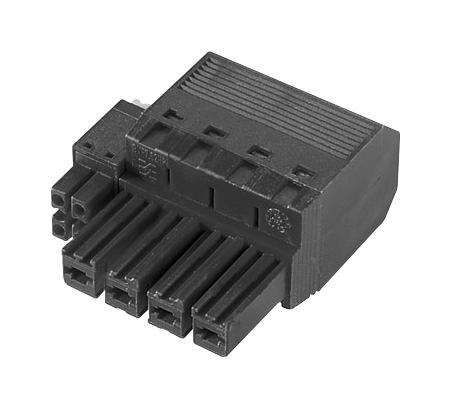

WEIDMULLER 1080610000 Power Signal Connector
The OMNIMATE Power series BV/SV 7.62HP features a combined 180° female plug with power and signal contacts utilizing push-in connection technology, ensuring secure, vibration-resistant connections. It includes a self-locking middle flange for space-saving installation and offers optional pluggable shield connections with wide contact area on the housing, eliminating the need for separate bolting. Suitable for connecting servo and asynchronous drives, it meets IEC 61800-5-1 and UL 1059 class C 600 V standards, making it ideal for power and signal integration in industrial automation applications.
WEIDMULLER 1080610000 Power Signal Connector Specifications:
- Type of connection: PUSH IN
- Pitch: 7.62 mm (0.3 inch)
- Number of poles: 5
- Voltage rating IEC: 1000 V
- Current rating IEC: 38 A
- Clamping range: 0.5 - 10 mm²
- Rated data UL: 600 V / 35 A
- Contact Material: Copper alloy, tinned surface
- Dimensions: 180° plug, width accommodates space-saving design
- Insulation Material: PA GF, Black, RAL 9011
- Flammability rating: UL 94 V-0
- Temperature range: -60°C to 125°C
- Protection class: IP20
- Stripping length: Signal 8mm, Power 12mm
- Plugging cycles: 25
- Maximum wiring capacity: 10 mm² wire cross-section
Buy the Buy Weidmüller BVF 7.62HP Part Number 1080610000 Online
Order the Weidmüller BVF 7.62HP connector online today for reliable, space-saving power and signal connections suitable for industrial drives and automation. Featuring push-in technology, a secure self-locking flange, and optional shield connection, it ensures high performance and safety. Its robust design supports up to 1000V and 38A, with easy wiring for cross-sections from 0.5 to 10 mm². Perfect for factory automation, servo drives, and signal integration, this compact connector guarantees durability and precision in demanding environments.
Get Weidmüller BVF 7.62HP today—designed for secure power and signal connections with space-efficient flange and optional shield features.
