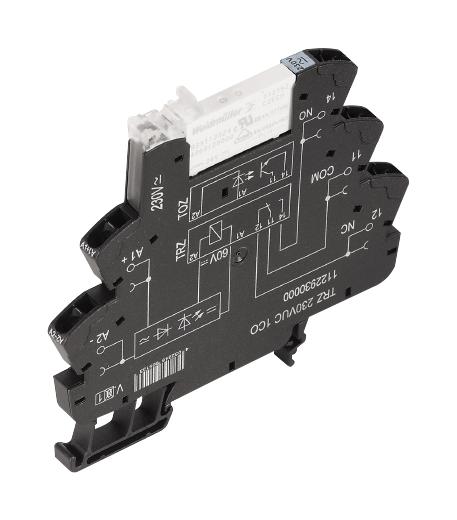

WEIDMULLER 1122930000 Industrial Relay
The Weidmueller TERMSERIES relay module TRZ 230VUC 1CO is a reliable industrial switch designed for automation and control systems. It features a single AgNi contact rated at 6A with a control voltage of 230V UC, suitable for resistive loads up to 1500 VA. The module includes a green LED status indicator, rectifier protection circuit, and is designed for DIN rail mounting. Its compact dimensions, robust construction, and high switching capacity make it ideal for various industrial applications requiring precise and durable switching solutions.
WEIDMULLER 1122930000 Industrial Relay Specifications:
- Dimensions: Width 6.4mm, Height 90.5mm, Depth 87.8mm
- Weight: 3179 g
- Rated control voltage: 230 V UC +10%
- Rated current: AC 3.5mA, DC 2.9mA
- Power rating: 0.8 VA, 700 mW
- Switching voltage: Max 250 VAC, Max 250 VDC
- Maximum switching capacity: 1500 VA resistive AC, 144 W at 24 V DC
- Continuous current: 6A, Inrush current: 20A/20ms
- Contact type: 1 CO AgNi, Mechanical life: 5 x 10^6 cycles
- Mounting: DIN rail TS 35
- Environmental: Operating temperature -40°C to 60°C, Humidity 5-95% rel.
- Insulation: Rated voltage 300V, Surge voltage category WW, Pollution Level 2
- Dielectric strength: Input-output 4kV, Contact to mounting rail 4kV
- Impulse withstand: 6kV (1.2/50us)
- Approvals: UL Listed, RoHS compliant, EN standards
- Connection: Tension clamp, stripping length 8mm, wire cross section 0.14mm² to 2.5mm²
- Flammability rating: UL 94 V-0
Buy the Weidmueller TRZ 230VUC 1CO – Reliable Industrial Relay for Automation
Purchase the Weidmueller TERMSERIES relay module TRZ 230VUC 1CO online today to enhance your automation projects. This high-capacity relay features a 6A contact rating, 230V UC control voltage, LED status indicator, and robust DIN rail mounting. Designed for durability and precision, it supports resistive loads up to 1500 VA and operates efficiently within a temperature range of -40°C to 60°C. Easy to install with tension clamp connections, this relay is ideal for automation, control panels, and industrial switching applications. Order now and ensure reliable performance in your systems.
Get Weidmueller TRZ 230VUC 1CO today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy WEIDMULLER 1122930000?
You can click on the BUY or RFQ button to purchase 1122930000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1122930000?
You can download the 1122930000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1122930000?
WEIDMULLER
