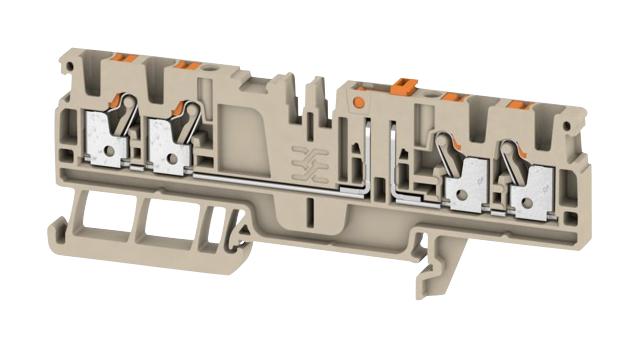

WEIDMULLER 1989860000 ADT 2.5 4C Terminal Block

WEIDMULLER 1989860000 ADT 2.5 4C Terminal Block Specifications:

• Width: 5.1 mm
• Height: 96 mm
• Depth: 37.65 mm
• Depth including DIN rail: 38.4 mm
• Width(inches): 0.201 inch
• Height(inches): 3.78 inch
• Depth(inches): 1.482 inch
• Net weight: 12.779 g
• Continuous operating temp., min.: -60 °C
• Continuous operating temp., max.: 130 °C
• Material: Wemid
• Colour of operational elements: Orange
• Colour: Dark Beige
• UL 94 flammability rating: V-0
• Certificate No.(ATEX): TUEV16ATEX7339U
• Max. voltage(ATEX): 400 V
• Wire cross section max.(ATEX): 2.5 mm²
• Current (IECEX): 20 A
• Certificate No.(IECEX): IECEXTUR16.0045U
• Current(ATEX): 20 A
• Max. voltage(IECEX): 400 V
• Wire cross section max. (IECEX): 2.5 mm²
• Number of levels: 1
• Number of potentials per tier: 1
• PE connection: No
• N-function: No
• PEN function: No
• Number of potentials: 1
• No. of clamping points per level: 4
• Levels cross-connected internally: No
• Mounting rail: TS 35
• Installation advice: Mounting rail, Snap-on
• Type of mounting: TS 35
• Open sides: right
• Type of fixing: Snap-on
• With snap-in pegs: No
• Blade size: 0.6 x 3.5 mm
• Clamping range, min.: 0.14 mm²
• Connection cross-section, stranded, min.: 0.5 mm²
• Gauge to IEC 60947-1: A3
• Stripping length: 10 mm
• Twin wire-end ferrules, min.: 0.5 mm²
• Wire connection cross section AWG, max.: AWG 12
• Wire connection cross section, finely stranded, max.: 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm²
• Wire connection cross-section, solid core, max.: 2.5 mm²
• Clamping range, max.: 2.5 mm²
• Connection cross-section, stranded, max.: 2.5 mm²
• Connection direction: top
• Number of connections: 4
• Twin wire-end ferrules, max.: 0.75 mm²
• Type of connection: PUSH IN
• Wire connection cross section AWG, min.: AWG 28
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 2.5 mm²
• Wire connection cross-section, finely stranded, min.: 0.5 mm²
• Wire connection cross-section, solid core, min.: 0.5 mm²
• Cross-disconnect: without
• Slitting: Pivoting
• Integral test socket: Yes
• Rated cross-section: 2.5 mm²
• Rated current: 20 A
• Standards: IEC 60947-7-1
• Rated impulse withstand voltage: 6 kV
• Rated voltage: 500 V
• Current at maximum wires: 20 A
• Volume resistance according to IEC 60947-7-x: 1.33 mΩ
• Pollution severity: 3
• Certificate No. (cURus): E60693
• Conductor size Factory wiring min. (cURus): 28 AWG
• Conductor size Field wiring min. (cURus): 28 AWG
• Current size C(cURus): 20 A
• Voltage size B(cURus): 300 V
• Voltage size D (cURus): 600 V
• Conductor size Factory wiring max. (cURus): 12 AWG
• Conductor size Field wiring max. (cURus): 12 AWG
• Current size B(cURus): 20 A
• Current size D(cURus): 5 A
• Voltage size C(cURus): 300 V
• ETIM 6.0: EC000902
• eClass 9.1: 27-14-11-26
• eClass 6.2: 27-14-11-26
