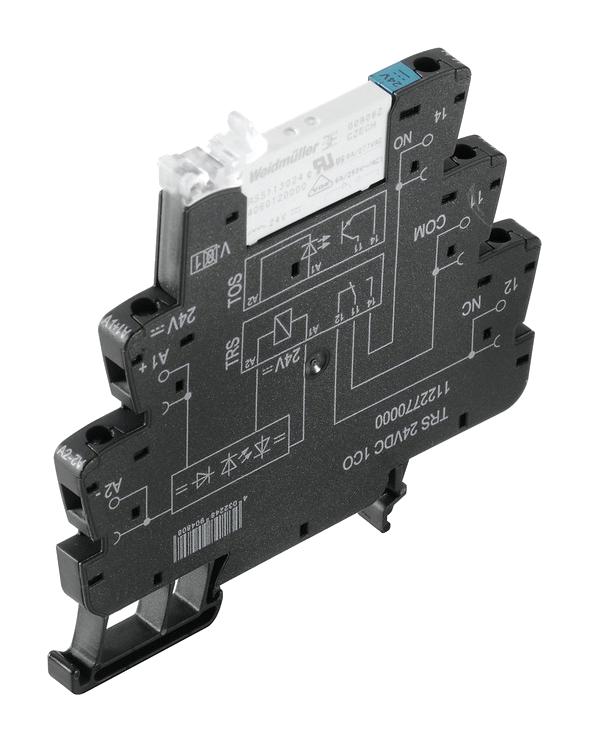

WEIDMULLER 1123000000 industrial relay
The TERMSERIES relay module features a 24V DC control voltage with a single SPDT changeover contact made of AgNi with gold plating. It is designed for industrial automation, offering a rated control current of 6A and a switching capacity of 250VAC resistive load. Its compact dimensions (6.4mm width, 89.6mm height, 87.8mm depth) make it ideal for panel mounting applications. Equipped with a green LED indicator, free-wheeling diode protection, and robust EN standards compliance, it provides reliable switching performance in automation systems.
WEIDMULLER 1123000000 industrial relay Specifications:
- Width: 6.4mm (0.252 inch)
- Height: 89.6mm (3.528 inch)
- Depth: 87.8mm (3.457 inch)
- Weight: 339g
- Rated control voltage: 24V DC +20%
- Rated current: 6A
- Max switching voltage: AC 250V, DC 250V
- Switching capacity (resistive): 1500 VA at 230V AC
- Contactor contact material: AgNi with gold plating
- Contact life: 5 x 10^6 cycles
- Ambient temperature: -40°C to 60°C
- Connection method: Screw connection, AWG 26 to AWG 14
- Pollution severity: Level 2
- Ingress protection: IP20
- Dielectric strength: 4kV between input/output
- Impulse withstand voltage: 6kV
- Standards: EN 50178, EN 55011
Buy the Weidmueller Series TRS 24VDC 1CO AU: 1123000000
Purchase the Weidmueller TRS series 24V DC relay online today to ensure reliable automation control. With robust AgNi contact material, 6A switching capacity, compact design, and integrated LED status indicator, this relay is ideal for industrial automation and control systems. Its durable construction complies with strict standards, providing dependable performance in demanding environments. Easy screw connection and versatile ratings make it suitable for various applications, ensuring long-lasting operation and improved system reliability. Buy now to enhance your automation setup with this high-quality relay.
Get Weidmueller TRS 24VDC 1CO AU relay today—built for precision and long-lasting durability.
