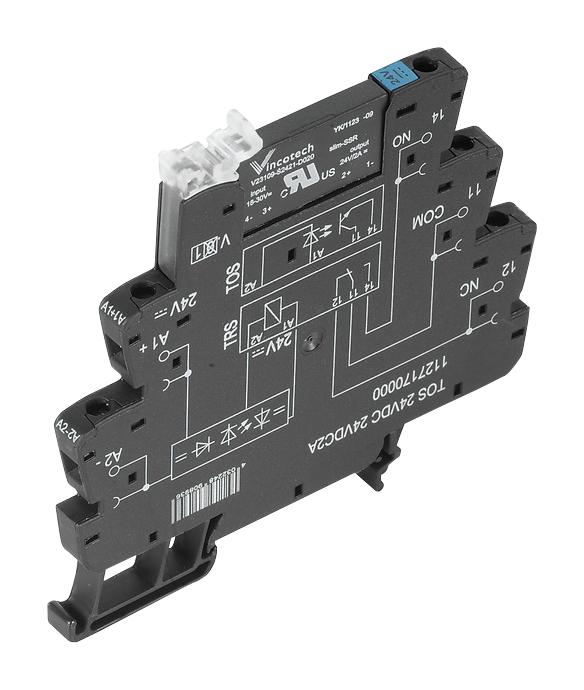

WEIDMULLER 1127170000 Solid-State Relay Module
The Weidmuller TERMSERIES TOS 24VDC 24VDC2A is a compact solid-state relay module ideal for industrial automation and control systems. This module combines a solid-state relay and a base with AC/DC/UC input, offering versatility in various applications. It features a 24V DC input voltage, a 3-33V DC output voltage, and a continuous current rating of 2A. The module's design includes screw connections, multiple-voltage input options (24-230V UC), protective circuits (free-wheel diode, RC element), and an illuminated ejection lever for enhanced functionality and safety. It is suitable for applications requiring reliable and efficient switching of DC loads.
WEIDMULLER 1127170000 Solid-State Relay Module Specifications:
- Type: TOS 24VDC 24VDC2A
- Order No.: 1127170000
- Version: TERMSERIES, solid-state relais, 1 NO contact
- Rated control voltage: 24 V DC ±20 %
- Rated switching voltage: 3...33 V DC
- Continuous current: 2 A
- Connection type: Screw connection
- GTIN(EAN): 4032248908936
- Quantity: 10 pc(s).
- Width: 6.4 mm
- Height: 89.6 mm
- Depth: 87.8 mm
- Net weight: 32.2 g
- Width (inches): 0.252 inch
- Height (inches): 3.528 inch
- Depth (inches): 3.457 inch
- Humidity: 5–95% rel. humidity
- Operating temperature min: -20 °C
- Storage temperature min: -40 °C
- Storage temperature: -40 °C...70 °C
- Operating temperature max: 60 °C
- MTTF: 1,077 Years
- REACH SVHC: Lead 7439-92-1
- Ambient temperature (operational) max: 60 °C
- Connection cross-section AWG max: AWG 14
- Tightening torque max: 0.4 Nm
- Connection cross-section AWG min: AWG 26
- Type of conductor: rigid copper conductor, flexible copper conductor
- Pollution severity level: 2
- Power rating: 0.29 W
- Cut-in/dropout current: 6.2 mA/5.4 mA DC
- Protective circuit: Free-wheel diode, Reverse polarity protection
- Coil voltage of the replacement relay: 24 V DC
- Nominal control current: 11.5 mA DC(±20%)
- Cut-in/dropout voltage: 14 V/12.5 V DC
- Status indicator: Green LED
- Rated switchingvoltage: 3...33 V DC
- Rated switchingcurrent: 2 A
- Switch-on delay: ≤0,1 ms
- Voltage drop at max. load: ≤ 120 mV
- Min. switchingcurrent: 5 mA
- Leakage current: < 10µA
- Short-circuit-proof: No
- max. switching frequency (DC control voltage): 300 Hz
- Contact type: 1 NO contact (MOS-FET)
- Mountingrail: TS 35
- UL 94 flammability rating: V-0
- Colour: Black
- Standards: DIN EN 50178
- Certificate no. (cULus): E141197
