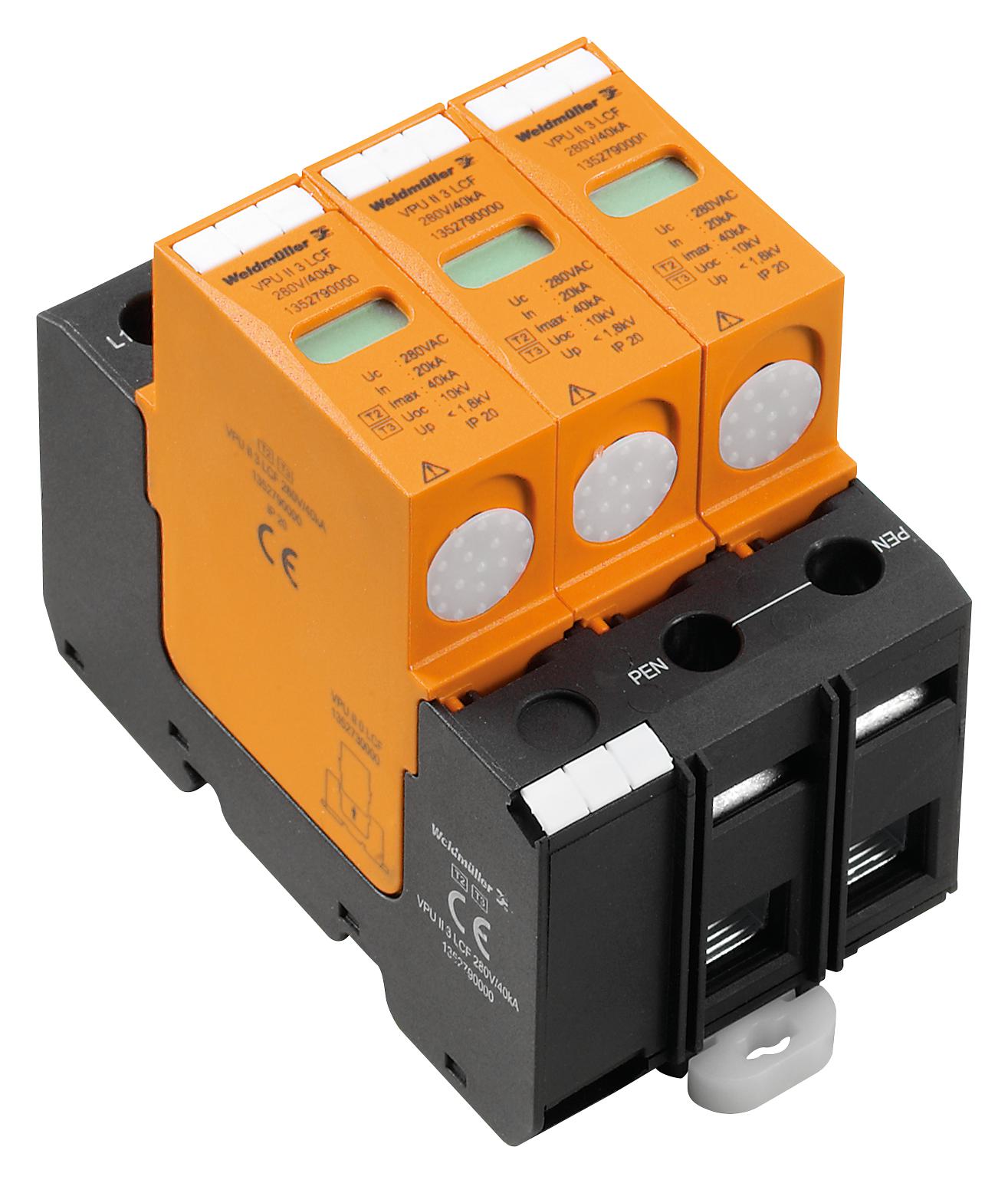

WEIDMULLER 2025570000 VPU II Surge Protection Device
The Weidmuller VPU II series surge protection devices are designed to minimize interference coupling caused by transient surge voltages, ensuring fewer malfunctions in installations. These arrestors are technically coordinated, eliminating the need for decoupling between different types. They meet standards like IEC 61643-11 and are suitable for systems adhering to IEC 61643-12 and IEC 62305-4. The VPU II 3W WYE 347V model is specifically designed for power supply systems in the US market and offers reliable protection against voltage surges.
WEIDMULLER 2025570000 VPU II Surge Protection Device Specifications:
- Delivery Status: This article will no longer be available in the future
- Available Until: 2020-05-01
- Type: VPU II 3W WYE 347V
- Order No.: 2025570000
- Version: without telecomm. contact
- GTIN(EAN): 4050118405316
- Quantity: 1pc(s)
- Alternative Product: 2591250000
- Width: 54 mm
- Height: 94 mm
- Depth: 69 mm
- Mounting Dimension - Height: 75 mm
- Width (inches): 2.126 inch
- Height (inches): 3.701 inch
- Depth (inches): 2.717 inch
- Net Weight: 410 g
- Humidity: 5 - 95% rel. humidity
- Operating Temperature, Min: -40 °C
- Storage Temperature, Min: -40 °C
- Storage Temperature: -40 °C...85 °C
- Operating Temperature, Max: 70 °C
- Storage Temperature, Max: 85 °C
- Operating Temperature: -40 °C...70 °C
- Certificate No. (cURus): E354261
- Rated Voltage UN: 347 V
- VPR(L/N-PE): 1,800 V
- SCCR: 200 kA
- Category: SPD TYPE 1CA/2CA
- Continuous Voltage UC, Max: 510 V
- Test Voltage (UL 1449): 600 V
- MCOV(L/N-PE): 510 Vac
- In: 20 kA
- Colour: black,orange
- Optical Function Display: green = OK; red = arrester is defective - replace
- Rail: TS 35
- UL 94 Flammability Rating: V-0
- Design: Installation housing; 3TE, Insta IP 20
- Protection Degree: IP20
- Segment: Power distribution
- Pollution Severity: 2
- Surge Voltage Category: III
- Discharge Current Imax(8/20µs) wire-PE: 40 kA
- Follow-on Current Extinguishing Capability Ifi: Not available due for technical reasons
- Low Voltage Network: TN-C (U0≤ 230/400 V)
- Protection Level Upat IN(L/N-PE): ≤ 2.1 kV
- Requirements Class, Acc. to EN 61643-11: T2
- Short-circuit Current Rating ISCCR: 25 kA
- Voltage Type: AC
- Discharge Current In(8/20µs) wire-PE: 20 kA
- Fuse: 125 A gL > (if back up fuse > 125 A)
- Max. Continuous Voltage, Uc (AC): 510 V
- Requirements Category Acc. to IEC 61643-11: Type II
- Response Time: ≤ 25 ns
- Signalling Contact: No
- Tightening Torque, Min: 2 Nm
- Wire Connection Cross Section AWG, Min: AWG 14
- Wire Cross-section, Solid, Min: 4 mm²
- Wire Connection Cross-section, Finely Stranded, Min: 2.5 mm²
- Conductor Cross-section, Flexible, AEH (DIN 46228-1), Min: 2.5 mm²
- Connection Cross-section, Stranded, Min: 4 mm²
- Stripping Length, Rated Connection: 15 mm
- Tightening Torque, Max: 3 Nm
- Wire Connection Cross Section AWG, Max: AWG 0
- Wire Cross-section, Solid, Max: 16 mm²
- Wire Connection Cross Section, Finely Stranded, Max: 25 mm²
- Conductor Cross-section, Flexible, AEH (DIN 46228-1), Max: 25 mm²
- Connection Cross-section, Stranded, Max: 50 mm²
