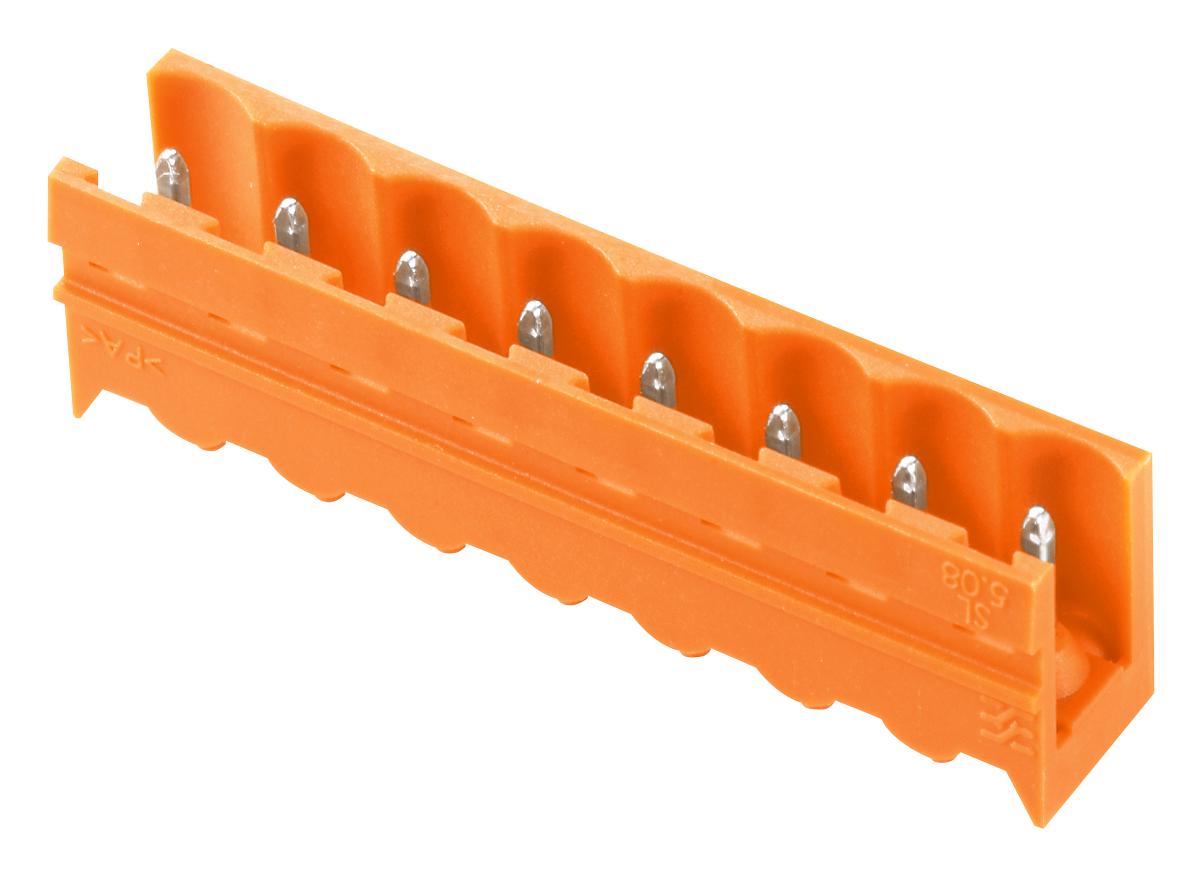

WEIDMULLER 1146510000 High-current PCB Header
The OMNIMATE Signal series BL/SL 5.08HC/09/180 pin header is a high-current PCB connector designed for reliable signal and power connections in industrial applications. Made of flame-retardant PA GF with orange color, it features 9 poles, a pitch of 5.08 mm, and tinned, octagonal solder pins measuring 3.2 mm in length. The connector supports THT soldering, has a solder eyelet diameter of 1.3 mm, and withstands operating temperatures from -50°C to 100°C. Approved to IEC, UL, and CSA standards, it offers durable contact surfaces with Ni/Sn plating for robust connections.
WEIDMULLER 1146510000 High-current PCB Header Specifications:
- Pitch: 5.08 mm (0.2 inch)
- Number of poles: 9
- Solder pin length: 3.2 mm with +0.1/-0.3 mm tolerance
- Solder pin diameter: 1.2 mm, octagonal, Ni/Sn plated
- Eyelet hole diameter: 1.3 mm with +0.1 mm tolerance
- Material: PA GF (Flame retardant)
- Insulation color: Orange (RAL 2000)
- Rated voltage: 400 V (IEC), 300 V (UL/CSA)
- Rated current: 24 A (IEC), 18.5 A (UL), 19 A (at 40°C)
- Operating temperature: -50°C to 100°C
- Storage temperature: -25°C to 55°C
- Flammability: UL 94 V-0
- Contact material: Copper alloy with Ni/Sn surface plating
- Number of solder pins per pole: 1
- Mechanical soldering cycles: 25
- Certifications: IEC, UL, CSA, RoHS
- Suitable for wave and manual soldering
- Compatible with industry standards for connection reliability
