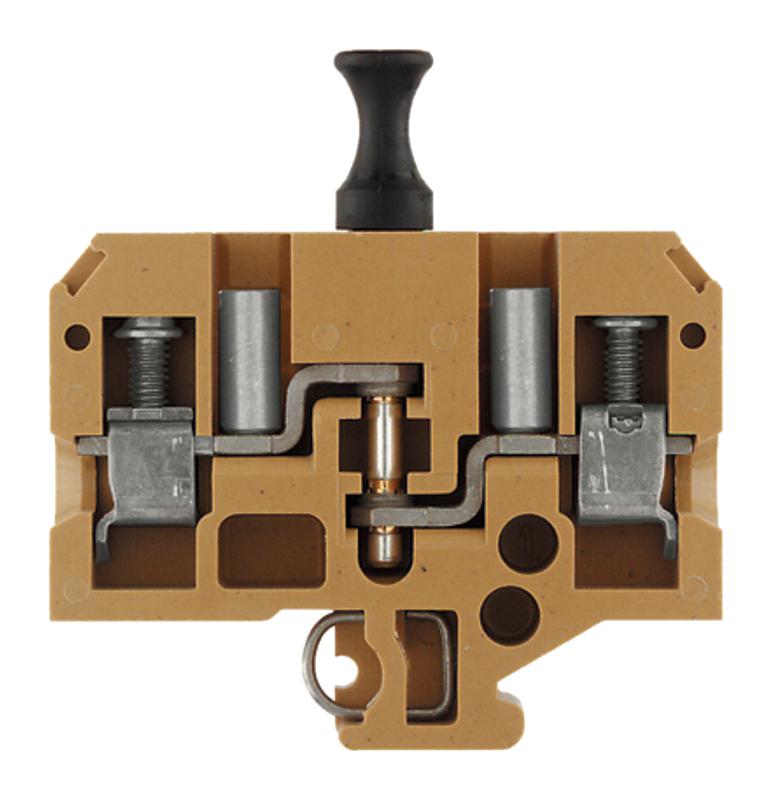

WEIDMULLER 0324020000 SAKC 10 STB/RE Terminal Block

WEIDMULLER 0324020000 SAKC 10 STB/RE Terminal Block Specifications:

• Available until: 2018-03-31
• Type: SAKC 10 STB/RE
• Order No.: 0324020000
• Version: Screw connection, Spacer, With sockets, One end without connector
• GTIN(EAN): 4008190055523
• Quantity: 50pc(s)
• Alternative product: 7910180000
• Width: 12 mm
• Height: 65 mm
• Depth: 52.5 mm
• Net weight: 48.82 g
• Width(inches): 0.472 inch
• Height(inches): 2.559 inch
• Depth(inches): 2.067 inch
• Storage temperature,max.: 55 °C
• Storage temperature: -25 °C...55 °C
• Continuous operating temp., max.: 130 °C
• Storage temperature,min.: -25 °C
• Continuous operating temp.,min.: -60 °C
• REACH SVHC: Lead 7439-92-1
• Material: KrG
• UL 94 flammability rating: V-0, 5VA
• Colour: mediumyellow
• Number of potentials: 1
• Number of clamping points per level: 2
• Levels cross-connected internally: No
• Rail: TS 32
• PE function: No
• End cover plate required: Yes
• Number of levels: 1
• Number of potentials per tier: 1
• PE connection: No
• N-function: No
• PEN function: No
• Explosion-tested version: No
• Open sides: right
• Installation advice: Rail
• Type of mounting: Snap-on
• Certificate No.(CSA): 12400-186
• Current size D(CSA): 5 A
• Voltage size D(CSA): 600 V
• Wire cross section min. (CSA): 20 AWG
• Current size C(CSA): 25 A
• Voltage size C(CSA): 600 V
• Wire cross section max.(CSA): 10 AWG
• Blade size: 1.0 x 5.5 mm
• Clamping range,min.: 0.33 mm²
• Connection cross-section, stranded, max.: 10 mm²
• Connection direction: on side
• Number of connections: 2
• Tightening torque,max.: 2.4 Nm
• Torque level with DMS electric screwdriver: 4
• Wire cross section AWG, max.: AWG 8
• Wire connection cross-section, finely stranded, max.: 10 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1,min.: 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,min.: 10 mm²
• Wire connection cross-section, solid core, max.: 10 mm²
• Clamping range,max.: 10 mm²
• Clampingscrew: M 4
• Connection cross-section, stranded, min.: 1.5 mm²
• Gauge to IEC 60947-1: B6
• Stripping length: 12 mm
• Tightening torque,min.: 1.2 Nm
• Type of connection: Screw connection
• Wire connection cross section AWG, min.: AWG 22
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1,max.: 10 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,max.: 10 mm²
• Wire connection cross-section, finely stranded, min.: 0.5 mm²
• Wire connection cross-section, solid core, min.: 0.5 mm²
• Cross-disconnect: without
• Slitting: pluggable
• Integral test socket: Yes
• Rated cross-section: 10 mm²
• Rated current: 26 A
• Standards: IEC 60947-7-1
• Power loss in accordance with IEC 60947-7-x: 1.82 W
• Pollution severity: 3
• Rated voltage: 400 V
• Current at maximum wires: 27 A
• Volume resistance according to IEC 60947-7-x: 0.56 mΩ
• Rated impulse withstand voltage: 6 kV
• Certificate No.(UR): E60693
• Conductor size Factorywiringmin.(UR): 26 AWG
• Conductor size Field wiringmin.(UR): 22 AWG
• Voltage size C (UR): 600 V
• Conductor size Factorywiringmax.(UR): 8 AWG
• Conductor size Field wiringmax.(UR): 8 AWG
• Current size C(UR): 25 A
• ETIM 6.0: EC000902
• eClass 9.0: 27-14-11-26
• eClass 10.0: 27-14-11-26
• ETIM 7.0: EC000902
• eClass 9.1: 27-14-11-26
• UNSPSC: 30-21-18-11
