WEIDMULLER 1146770000 Pin Header

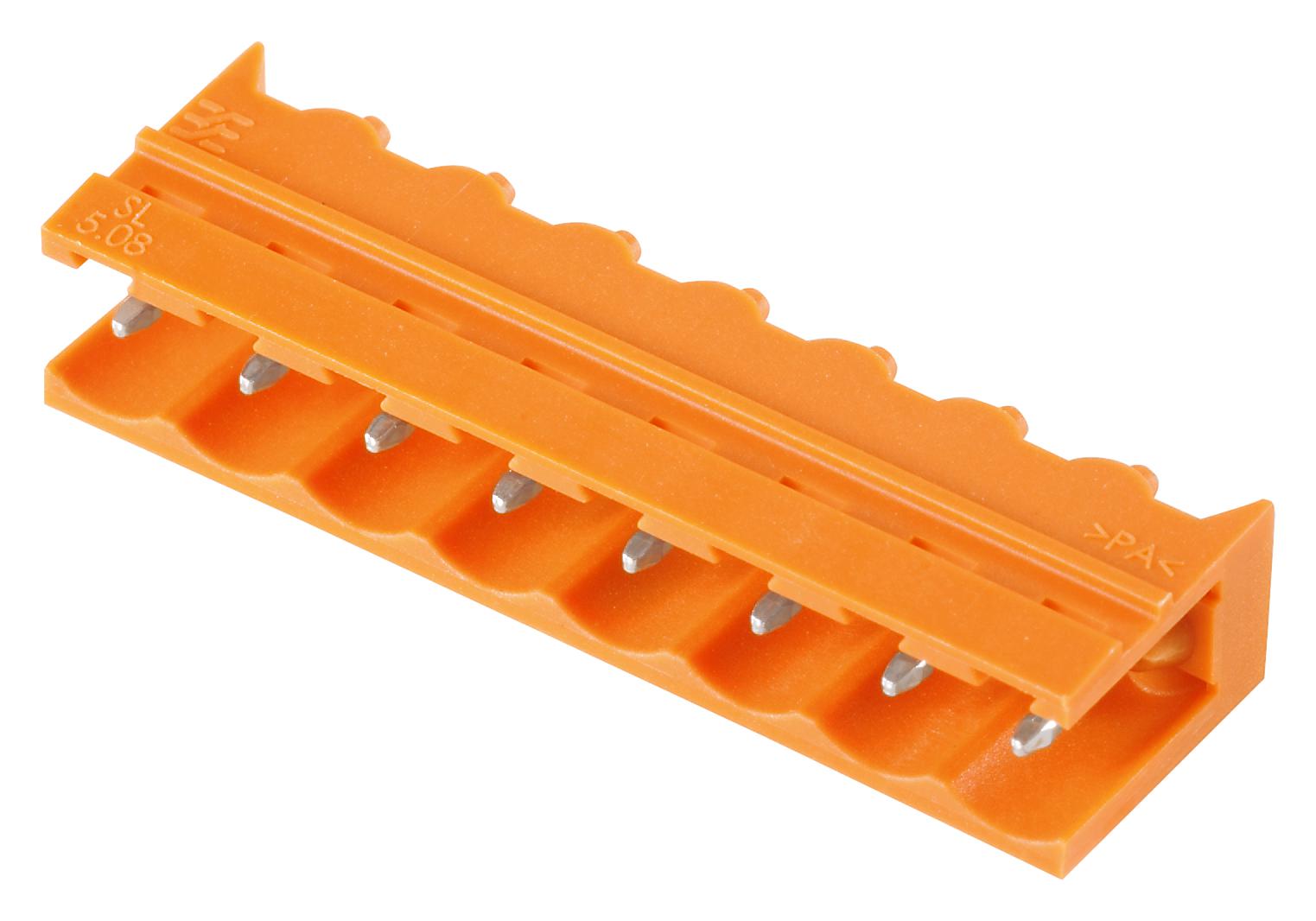

The pin headers are constructed from glass-fibre-reinforced plastic with a 90° wire outlet, optimized for wave soldering. They feature a flange variant that can be screwed onto the circuit board or the counter piece, eliminating the need for an extra screw and providing mechanical strain protection. These headers are rated for 400 V/24 A IEC and 300 V/18.5 A UL, with a pitch of 5.08 mm, four poles, and a solder pin length of 3.2 mm. Their orange insulating material ensures durability and reliable electrical connections.
WEIDMULLER 1146770000 Pin Header Specifications:
- Dimensions: Height 8.5mm, Depth 12mm, Length 15.24mm, Pin Diameter 1.2mm, Eyelet Hole Diameter 1.3mm
- Material: Insulating material PA GF, Contact material CuMg, Tinned solder connection
- Electrical Ratings: IEC 400 V/24A, UL 300V/18.5A, CSA 300V/10A
- Temperature Range: Storage -25°C to 55°C, Operating -50°C to 100°C
- Mechanical: 4 poles, 1 solder pin per pole, Solder pin length 3.2mm ±0.17mm, Tolerance of ±0.1mm
- Certification: UL, CSA, RoHS compliant, Flammability rating V0
- Other: 25 soldering cycles, Outgoing elbow 90°, Orange color, adheres to IEC 60947-7-1 standards
