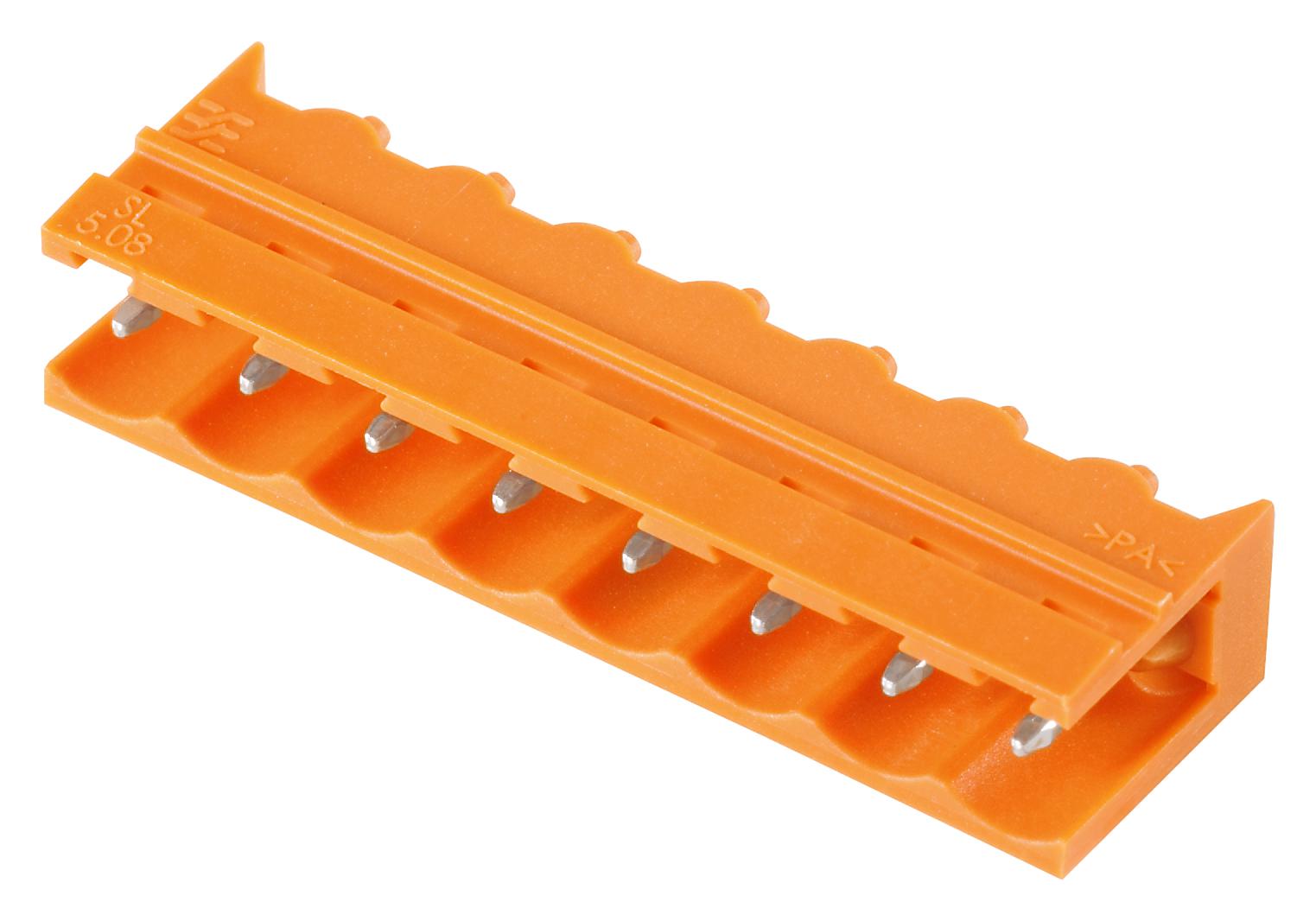

WEIDMULLER 1146940000 Pin Header
This pin header from the OMNIMATE Signal series is made of glass-fiber-reinforced plastic with a 5.08 mm pitch, designed for wave soldering. It features 12 poles with open side connection, tinned copper contacts, and a height of 8.5 mm. The vertical pin length is 3.2 mm, with a solder eyelet hole diameter of 1.3 mm. Suitable for PCB mounting with a 90° outgoing elbow, it is rated at 400 V and 24 A, conforming to IEC standards for reliable electronic connections.
WEIDMULLER 1146940000 Pin Header Specifications:
- Pitch: 5.08 mm (0.2 inch)
- Number of poles: 12
- Solder pin length: 3.2 mm (+0.17-0.3 mm tolerance)
- Pin dimensions: d=1.2 mm, octagonal
- Solder eyelet hole diameter: 1.3 mm
- Material: PA GF (glass-fiber reinforced polyamide)
- Contact material: Copper alloy, tinned, Ni/Sn layer
- Height: 8.5 mm
- Depth: 12 mm
- Rated Voltage: IEC 400 V / UL 300 V
- Rated Current: IEC 24 A / UL 18.5 A
- Operating Temperature Range: -50°C to 100°C
- UL Flammability Rating: V0
- Certifications: IEC, UL, cURus
- Soldering profile for wave soldering: Single and double wave profiles with max 260°C
- Packaging: Box, 50 pieces per box
Buy the Buy Weidmueller Signal Series Pin Header Part Number 1146940000 Online
Secure your electronic projects with the Weidmueller Pin Header designed for efficient wave soldering, featuring 12 poles, a 5.08 mm pitch, and rated at 400 V and 24 A. Perfect for PCB assembly, it offers 90° outgoing elbows, tinned copper contacts, and high temperature resilience from -50°C to 100°C. Packaged conveniently for easy integration, this header ensures robust, reliable electrical connections suitable for industrial and consumer electronics. Purchase now to enhance your assembly process with quality and durability.
Get Weidmueller 1146940000 today—built for reliable PCB connections with high current capacity and wave soldering compatibility.
