WEIDMULLER 2583530000 Cable Grommet

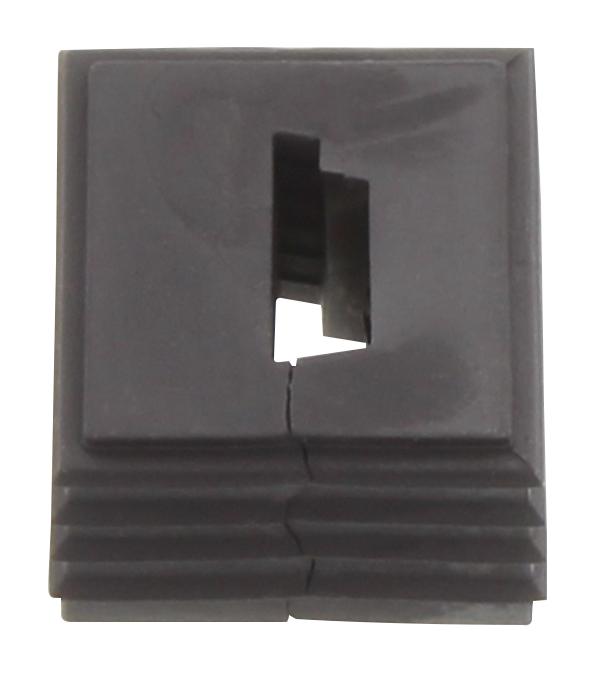

This conical-shaped grommet is designed for easy installation, sealing gaps, and providing strain relief in accordance with DIN EN 62444 standards. It is simply pressed into place from inside the frame inlay. The slotted, wave-cut design is suitable for preassembled cables and, when combined with the frame inlay, offers an IP66 degree of protection. Made from halogen-free, silicone-free, and UV-stabilized black thermoplastic elastomer (TPE), it features a small special geometry opening for ASI cables. The component has a flammability rating of UL94 HB and can operate within a temperature range of –40°C to +120°C (static).
WEIDMULLER 2583530000 Cable Grommet Specifications:
- Material: TPE, halogen-free, silicone-free, UV stabilized
- Color: Black RAL 9005
- Flammability: UL94 HB
- Temperature Range: -40°C to +120°C (static)
- Degree of Protection: IP66
- Design: Conical, wave-cut, slotted
- Application: Suitable for pre-assembled cables, flexible sealing for varying cable diameters
- Part Number: 2583530000
Buy the Buy Weidmuller Conical Cable Grommet Part Number 2583530000 Online
Purchase the Weidmuller cable grommet online to ensure secure sealing and strain relief for your control panels and enclosures. Its conical shape allows easy installation, fitting various cable diameters, while the wave-cut, slotted design guarantees an IP66 rating, providing excellent protection against dust and water ingress. Made from halogen-free and UV-stable TPE, it withstands harsh environmental conditions from -40°C to +120°C. Ideal for preassembled cables, this grommet enhances safety, reliability, and durability of your electrical and control systems. Order now to benefit from fast shipping and expert support.
Get Weidmuller 2583530000 today—designed for reliable sealing and long-lasting protection in your cable management system.
Frequently Asked Questions
Where can I buy WEIDMULLER 2583530000?
You can click on the BUY or RFQ button to purchase 2583530000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2583530000?
You can download the 2583530000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2583530000?
WEIDMULLER
