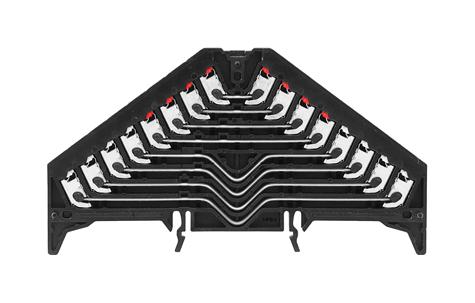

WEIDMULLER 1173790000 Patch Distributor Terminal
The PRV 8 SW 35X7.5 RT/WS is a robust eight-level patch distributor terminal block designed by Weidmueller. Made from durable polycarbonate with PBT operational elements, it features PUSH IN connection technology for quick, secure wiring. Suitable for TS 35x7.5 railway systems, it supports a max wire cross-section of 1.5 mm² with a rated voltage of 300V and current of 10A per connection. Its compact dimensions of 9.2mm width, 120mm height, and 65.5mm depth make it ideal for space-saving industrial control and automation applications.
WEIDMULLER 1173790000 Patch Distributor Terminal Specifications:
- Number of levels: 8
- Connections per level: 4
- Rated cross-section: 1.5 mm²
- Voltage rating: 300 V
- Current rating: 10 A
- Material: Polycarbonate housing, PBT operational elements
- Dimensions: Width 9.2 mm, Height 120 mm, Depth 65.5 mm
- Temperature range, operating: -10°C to +130°C
- Storage temperature: -25°C to +55°C
- Flammability rating: UL 94 V-0
- Fits TS 35 x 7.5 rail system
- Wire connection: PUSH IN, max AWG 16, min AWG 24
- CSA and UL certified for safety and performance
- Snap-on mounting for quick installation
Buy the Weidmueller Series P-series Patch Distributor: PRV 8 SW 35X7.5 RT/WS
Enhance your control panels with the Weidmueller Series P-series Patch Distributor. This robust eight-level terminal block features PUSH IN connection technology for quick wiring, rated for 1.5 mm² conductors, 300V, and 10A current capacity. Its compact dimensions of 9.2mm width, 120mm height, and 65.5mm depth facilitate space efficiency in industrial automation. Ideal for distribution of signals in automation and control systems, this terminal ensures reliable connections and easy maintenance, making it a perfect addition to your electrical infrastructure.
Order your Weidmueller Series P-series PRV 8 SW 35X7.5 RT/WS today and give your automation projects the dependable, space-saving terminal solution.
Frequently Asked Questions
Where can I buy WEIDMULLER 1173790000?
You can click on the BUY or RFQ button to purchase 1173790000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1173790000?
You can download the 1173790000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1173790000?
WEIDMULLER
