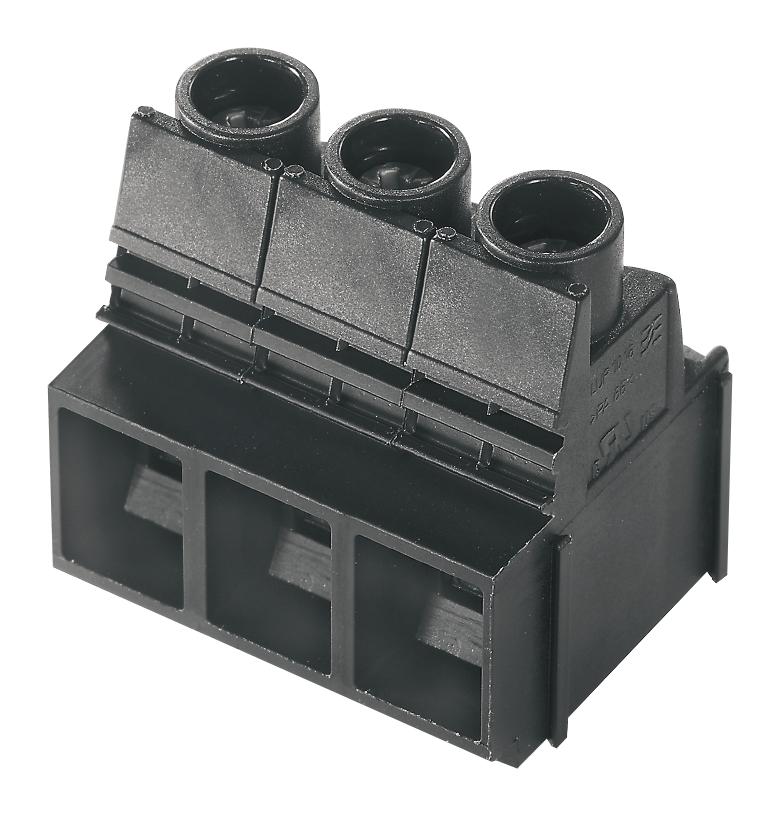

WEIDMULLER 1226300000 PCB Terminal Block
This PCB terminal provides reliable connections for 1000 V and up to 76 A, suitable for industrial control and power applications. It features a 10.16 mm pitch, 3 poles, and a clamping yoke connection for secure conductor attachment. Designed for PCB mounting with THT soldering, it supports conductor sizes from 0.5 to 16 mm² (AWG 26 to AWG 6). The terminal has a black insulating body made of Wemid (polyamide, UL94 V0 rated), with tinned copper contacts that ensure low contact resistance and durability. Its robust design and compliance with international standards make it ideal for industrial automation, power distribution, and control systems.
WEIDMULLER 1226300000 PCB Terminal Block Specifications:
- Pitch: 10.16 mm (0.4 inch)
- Number of poles: 3
- Solder pin length: 3.2 mm
- Solder pin dimensions: 12 x 1.2 mm
- Solder eyelet hole diameter: 1.6 mm (tolerance +0.1 mm)
- Clamp range: 0.13 mm² to 16 mm² (AWG 26 to AWG 6)
- Rated voltage IEC: 1000 V, UL: 300 V
- Rated current IEC: 76 A, UL: 58 A
- Rated impulse voltage: 6 kV (IEC), 1 kV (UL)
- Maximum wire cross-section: 16 mm²
- Wire connection method: Clamping yoke
- Mounting: THT solder connection
- Contact material: Tinned copper (ECu)
- Insulating material: Wemid (PA), UL94 V0 flammability rating
- Operating temperature: -50°C to +120°C
- Storage temperature: -25°C to +55°C
- Dimensions: Length 20.32 mm, width 12 mm
- Touch safety rating: IP20 plugged / IP10 unplugged
- Certifications: UL, CSA, IPC conformity
