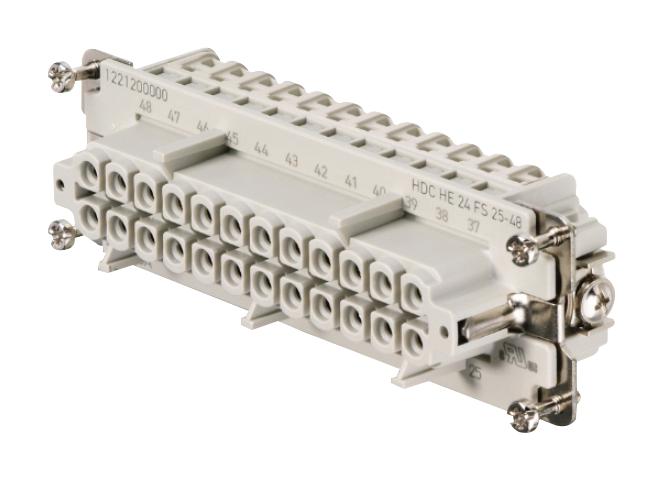

Weidmuller HDCHE24FS2548 Industrial Wiring Connector
The HDC HE 24 FS 25-48 is a 24-pole female screw connection interface designed for reliable wiring and electrical connections in industrial applications. Made from copper alloy with silver passivation, it features robust insulation with PC glass-fiber reinforcement, rated for 500 V and 16 A. The unit measures 111 mm in length, 34 mm in width, and 35.2 mm in height, weighing 138 g. It supports up to 2500 plugging cycles, with a temperature range from 40°C to 125°C. Suitable for high-pollution environments with UL and IEC certifications, ensuring durability and safety.
Weidmuller HDCHE24FS2548 Industrial Wiring Connector Specifications:
- Number of Poles: 24
- Rated Voltage: 500 V (IEC), 600 V (UL/CSA)
- Rated Current: 16 A
- Material: Copper alloy, silver passivated
- Insulation Material: PC glass-fibre reinforced
- Wire Cross-Section: Max. 2.5 mm², Min. 0.5 mm²
- Connection Type: Screw connection with M4 fixing screw
- Tightening Torque: Max 1.5 Nm, Min 1.2 Nm
- Dimensions: Length 111 mm, Width 34 mm, Height 35.2 mm
- Weight: 138 g
- Temperature Range: 40°C to 125°C
- Pollution Severity: 3
- Number of Plugging Cycles: 2500
- Rated Impulse Voltage: 6 kV
- Certifications: UL Listed, IEC compliance
Buy the Buy Weidmueller HDC HE 24 FS 25-48 Part Number 1221200000 Online
Purchase the Weidmueller HDC HE 24 FS 25-48 online today to benefit from a high-quality 24-pole screw connection interface designed for industrial environments. This robust connector features copper alloy contacts with silver passivation, supporting up to 16 A at 500 V. Its durable insulation made from PC glass-fibre reinforced material ensures safety and reliability in harsh conditions. With a compact size of 111 mm length and supporting 2500 plugging cycles, it provides excellent value for industrial wiring, automation, and control system applications. Shop now for dependable connectivity.
Order your Weidmueller Series HDCHE24FS2548 reliable screw connection today and ensure secure, durable wiring for your industrial projects.
Frequently Asked Questions
Where can I buy Weidmuller HDCHE24FS2548?
You can click on the BUY or RFQ button to purchase HDCHE24FS2548 from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCHE24FS2548?
You can download the HDCHE24FS2548 datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCHE24FS2548?
Weidmuller
