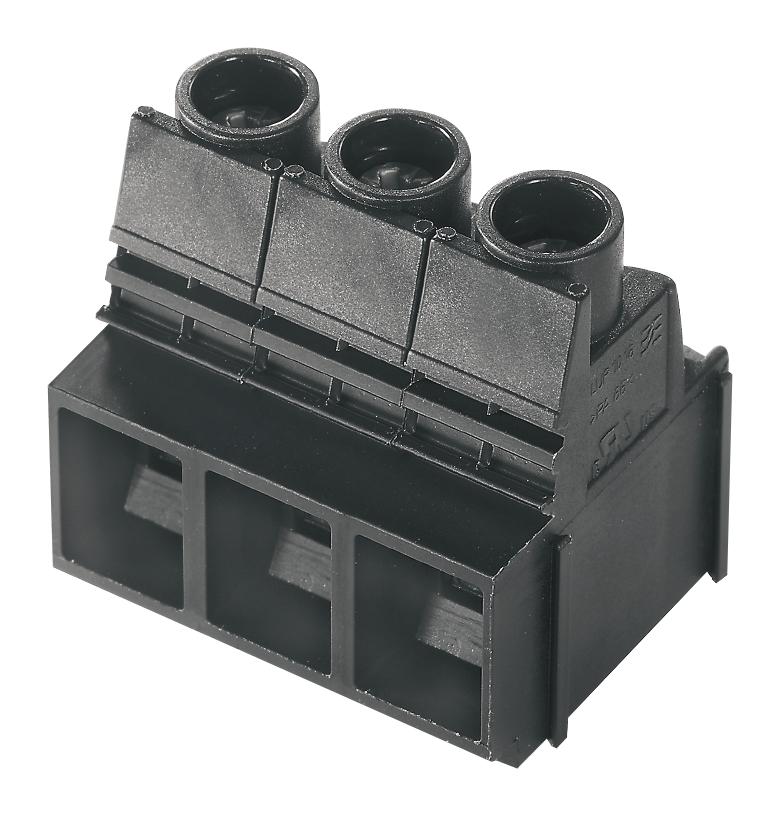

WEIDMULLER 1226350000 PCB terminal
This PCB terminal from the OMNIMATE Power series offers reliable electrical connections with a 10.16 mm pitch, suitable for 1000 V IEC applications and 300 V UL standards. It features a robust clamping yoke connection capable of handling conductors up to 16 mm², with a maximum current of 76 A at IEC standards and 58 A at UL standards. The terminal is designed for PCB mounting with a solder pin length of 3.2 mm, and has an 8-pole configuration with a 90° conductor outlet. Its durable construction ensures safe, high-performance connections in industrial environments, meeting UL 94V-0 flammability and UL/CSA approvals.
WEIDMULLER 1226350000 PCB terminal Specifications:
- Pitch: 10.16 mm (0.4 inch)
- Number of Poles: 8
- Solder Pin Length: 3.2 mm
- Solder Pin Dimensions: 12 x 1.2 mm
- Solder Eyelet Hole Diameter: 1.6 mm with +0.1 mm tolerance
- Clamping Range: 0.13 mm to 16 mm
- Rated Current IEC: 76 A, UL: 58 A
- Rated Voltage IEC: 1000 V, UL: 300 V
- Rated Impulse Voltage: 6 kV
- Max. Current per Pole: 76 A (IEC), 58 A (UL)
- Rated Temperature Range: -50°C to 120°C
- Material: Wemid (PA), contact material: Cu, tinned surface
- Flammability Rating: UL 94V-0
- Clamping Yoke Connection: Yes
- Mounting: THT solder connection
- Dimensions: Overall length 71.12 mm (2.8 inch)
- Touch-safe Protection: IP20 plugged / IP10 unplugged
- Approval Standards: UL, CSA, IEC
