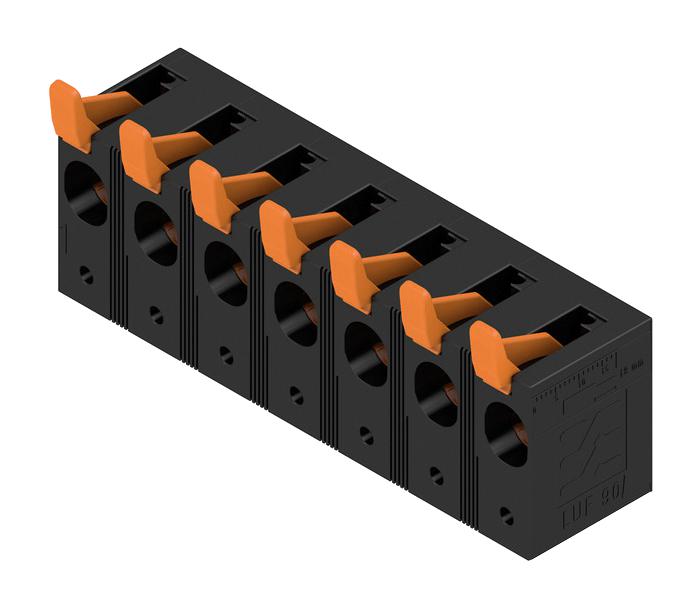

WEIDMULLER 2492050000 Power Terminal Block
The Weidmuller OMNIMATE Power series LU LUF 15.00/07/90V 5.0SN BK BX terminal block provides a sturdy and direct connection for demanding power electronics applications like solar inverters, frequency converters, and power supplies. It is designed with a PUSH IN connection mechanism and an actuator for ease of use. The terminal block supports a wide range of conductor sizes, from 0.5 mm² to 16 mm², and is suitable for various wire types, including solid, stranded, and flexible conductors. It offers excellent electrical performance with a rated voltage of 1000V and a rated current up to 68A, ensuring reliable power transmission in industrial environments.
WEIDMULLER 2492050000 Power Terminal Block Specifications:
- Type: LUF 15.00/07/90V 5.0SN BK BX
- Order No.: 2492050000
- Version: Printed circuit board terminals, 15.00 mm
- Number of poles: 7
- Solder pin length (l): 5 mm
- GTIN(EAN): 4050118604207
- Qty.: 10pc(s).
- Product data (IEC): 1000 V / 68 A / 0.5 - 16 mm²
- Product data (UL): 600 V/58 A/AWG 18 - AWG 6
- Packaging: Box
- Width: 101.58 mm
- Height: 47.03 mm
- Height of lowest version: 42.03 mm
- Depth (inches): 1.041 inch
- Width(inches): 3.999 inch
- Height(inches): 1.852 inch
- Depth: 26.45 mm
- Net weight: 84.65 g
- Pitch in mm(P): 15 mm
- Solderpin hole diameter(D): 1.7 mm
- Number of solderpinsperpole: 2
- Strippinglength: 18 mm
- L1 in inches: 3.543 inch
- Touch-safe protection: DIN VDE 57 106
- Wire connection method: PUSH IN with actuator
- Conductor outlet direction: 90°
- Pitch in inches(P): 0.591 inch
- Fitted bycustomer: No
- Solderpin dimensions: d = 1.2 mm, Octagonal
- Solder eyelet hole diameter tolerance(D): + 0,1 mm
- Screwdriver blade: 0.8 x 4.0
- L1 in mm: 90 mm
- Insulatingmaterial: Wemid(PA)
- Colour of operational elements: orange
- Comparative Tracking Index (CTI): ≥ 600
- UL 94 flammabilityrating: V-0
- Storage temperature,min.: -40 °C
- Operating temperature, min.: -40 °C
- Colour: black
- Material of operational elements: PA4T GF
- Insulatingmaterialgroup: I
- Insulation strength: ≥ 108Ω
- Contact material: E-Cu
- Storage temperature,max.: 70 °C
- Operating temperature, max.: 120 °C
- Clampingrange,min.: 0.5 mm²
- Clampingrange,max.: 16 mm²
- Wire connection cross section AWG, min.: AWG 18
- Wire connection cross section AWG, max.: AWG 4
- Solid,min. H05(07)V-U: 0.5 mm²
- Solid,max. H05(07)V-U: 16 mm²
- Stranded,min. H07V-R: 10 mm²
- Stranded,max. H07V-R: 16 mm²
- Flexible,min. H05(07)V-K: 0.5 mm²
- Flexible,max. H05(07)V-K: 16 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.: 0.5 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, max.: 16 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.: 0.5 mm²
- w. wire end ferrule, DIN 46228 pt 1, max.: 16 mm²
- Max. clamping range: 16 mm²
