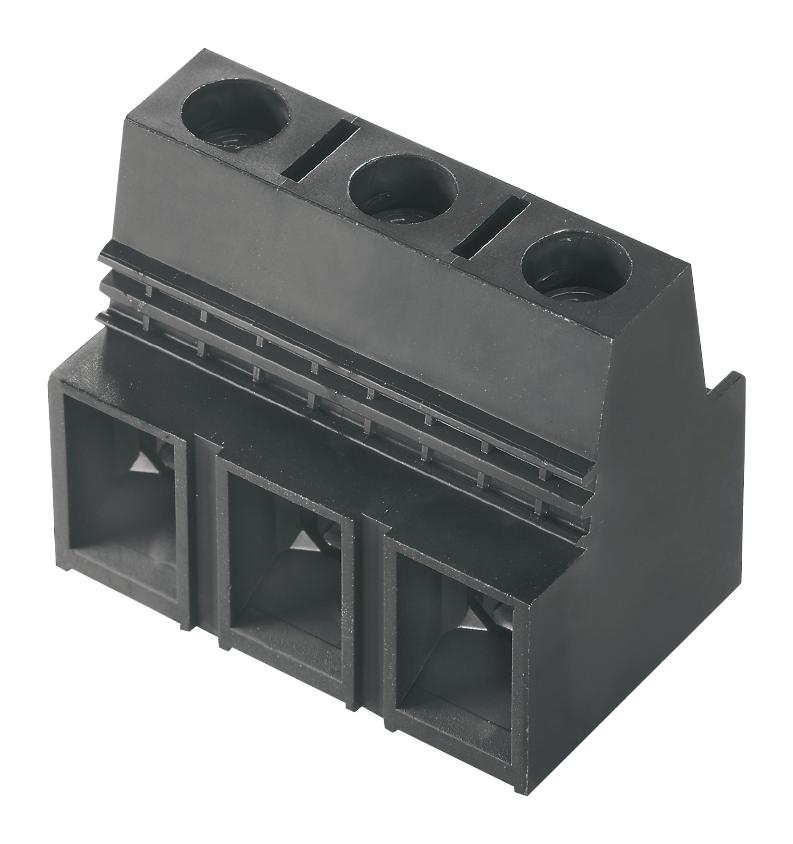

WEIDMULLER 1226480000 Power Terminal
This high-performance PCB terminal features a proven clamping yoke connection with a 15.00 mm pitch and a 90° conductor outlet, designed for reliable electrical connections in industrial applications. It supports a conductor range of 1.50 to 25 mm² (IEC) or 16 to 4 AWG (UL), with a rated voltage of up to 1000 V and a current capacity of 101 A (IEC) or 85 A (UL). Its THT solder connection and robust materials ensure durability and ease of installation for power distribution and control systems.
WEIDMULLER 1226480000 Power Terminal Specifications:
- Pitch in mm: 15mm
- Number of poles: 4
- Solder pin length: 4.5 mm
- Solder pin dimensions: 12 x 1.2 mm
- Solder eyelet hole diameter: 1.6 mm
- Max. clamping range: 25 mm²
- Rated voltage IEC: 1000 V
- Rated voltage UL: 600 V
- Rated current IEC: 101 A
- Rated current UL: 85 A
- Wire connection cross section: AWG 16 to AWG 4
- Soldering method: THT
- Material: Insulating Wemid (PA), Contact Copper (Cu)
- Flammability rating: UL 94V-0
- Temperature range (operating): -60°C to +120°C
- Insulation resistance: 210 MΩ
- Touch-safe protection: IP20
- Certifications: UL, IEC
Buy the Weidmiiller 1226480000 – Reliable PCB Power Terminal for Industrial Applications
Secure your power connections with the Weidmiiller Power Terminal featuring a 15 mm pitch, 4 poles, and a robust clamping yoke. Designed for reliability, it supports conductor cross sections up to 25 mm², rated for 1000 V and 101 A. Its THT solder connection makes installation straightforward, ensuring durable electrical contact in control panels, power distribution units, and automation systems. Perfect for industrial power applications requiring dependable, secure, and compliant connection points that withstand harsh conditions and enable efficient maintenance.
Get Weidmiiller 1226480000 today—built for power distribution and long-lasting durability in industrial environments.
