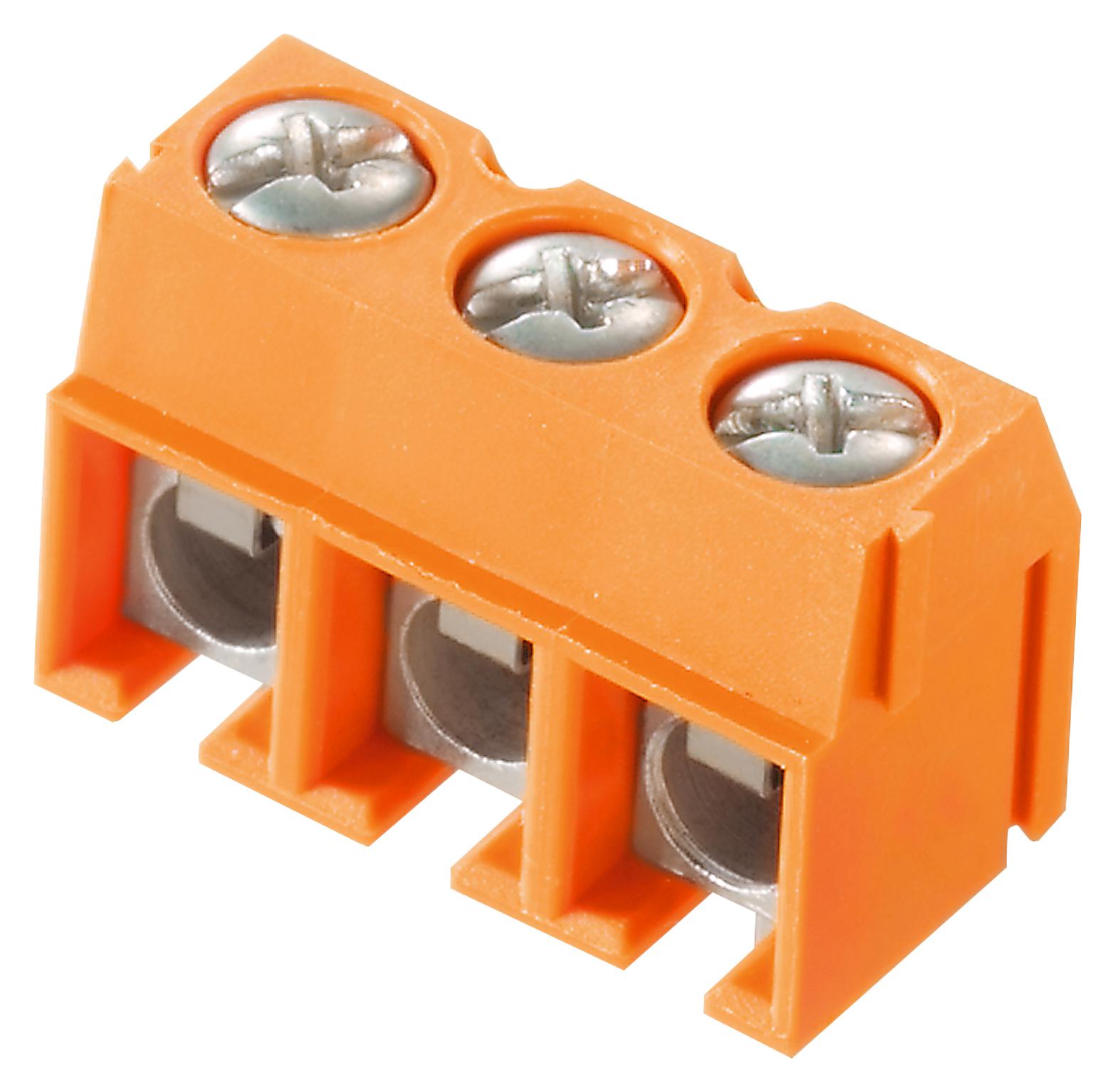

WEIDMULLER 1234610000 PCB Terminal
This PCB terminal features a 5.08 mm pitch with a 90° conductor outlet angle, pressure clamp connection, and solder pins. Suitable for conductor cross-sections up to 2.5 mm² or 14-26 AWG, it operates at 600 V IEC and 300 V UL, with a rated current of 24 A IEC and 15 A UL. The product boasts a tinned, orange insulating body made from Wemid (PA), copper alloy contacts with tin plating, and complies with safety standards including DIN VDE and IEC. Its compact design ensures reliable and safe connections for PCB assemblies in industrial applications.
WEIDMULLER 1234610000 PCB Terminal Specifications:
- Pitch: 5.08 mm (0.2 inch)
- Number of poles: 9
- Conductor cross-section: 0.13 - 2.5 mm² (AWG 26-14)
- Voltage rating IEC: 600 V / UL: 300 V
- Current rating IEC: 24 A / UL: 15 A
- Solder pin length: 3.5 mm
- Material: Wemid (PA) insulator, copper alloy contacts
- Contact surface: Tinned
- Insulation resistance: >10^9 Ω
- Flammability rating: UL 94V-0
- Operating temperature: -60°C to 120°C
- Max. tightening torque: 0.5 Nm
- Clamping range: 0.13 - 2.5 mm²
- Color: Orange (RAL 2000)
- Protection class: IP20
- Standards: DIN VDE 0470, IEC 60664-1, IEC 61984, CSA, UL
Buy the Weidmiiller Series PM: PCB Terminal 9 Poles 5.08mm Pitch: 1234610000
Purchase the Weidmiiller Series PM PCB Terminal with 9 poles and a 5.08 mm pitch to ensure reliable, safe, and efficient PCB connections. Its pressure clamp mechanism simplifies installation, while the tinned copper contacts and orange Wemid insulator guarantee durability and safety. Suitable for conductor cross-sections up to 2.5 mm² and rated for 600 V IEC or 300 V UL applications, this terminal meets international standards including DIN VDE and IEC. Ideal for industrial automation and control system projects requiring secure and stable electrical connections. Buy online now for quick delivery and consistent quality.
Order your Weidmiiller Series PM PCB Terminal 9 Poles 5.08mm Pitch today and give your projects the dependable quality they deserve.
