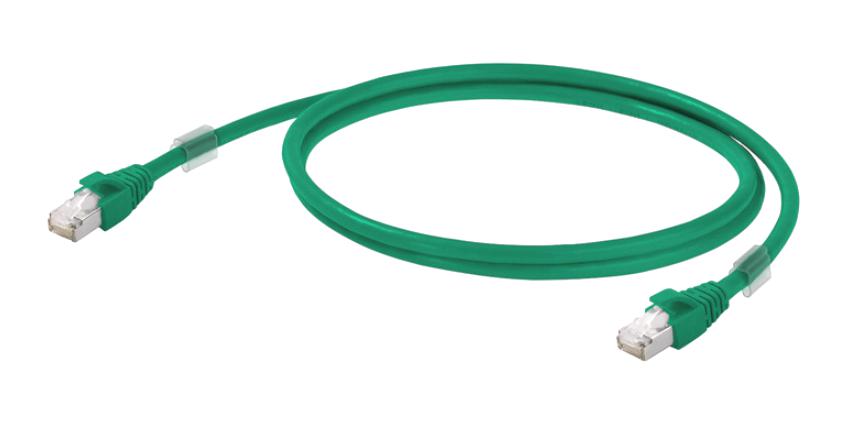

WEIDMULLER 1251590005 Ethernet Patch Cable
This industrial Ethernet patch cable is a 0.5-meter LSZH green cable designed for high-performance data transmission in network applications. Compliant with ISO/IEC 11801 Class Eq standards, it features complete shielding, RJ45 connectors with gold-plated contacts, and supports speeds up to 10 GBit/s. The cable has a maximum operating temperature of 60°C, a resistance to flame according to IEC standards, and is halogen-free. Its twisted pair design ensures minimal interference, making it suitable for demanding industrial and traffic engineering network installations.
WEIDMULLER 1251590005 Ethernet Patch Cable Specifications:
- Length: 0.5m
- Color: Green
- Insulation Cross-Section: 1.04 mm
- Sheath Diameter: 5.5-5.9 mm
- Cable Structure: S/FTP copper wiring with complete shielding
- Copper Diameter: 0.43 mm, Strands: 7
- Insulation Material: PE
- Number of Wires: 8
- Wire Arrangement: White-blue, White-orange, White-green, White-brown twisted pairs
- Shielding: Copper braid with 60% overlap
- Operating Temperature Range: -20°C to 60°C
- Rated Voltage: 48 V AC/DC, 30 V AC / 42.4 V DC UL rated
- Test Voltage: 750 V DC (wire-shield), Resistance Differential: 5%
- Characteristic Impedance: 100 ± 15 Ω
- Speed: 10 GBit/s
- Bending Radius: Minimum once only 25 mm, Repetitive 50 mm
- Flame Resistance: IEC 60332-1, UL 1581 FT2, IEC 60754-2
- Connector: RJ45 IP20, Gold-plated contact surface 20.8 μm
- Certifications: RoHS compliant, UL listed, IEC 60603-7-51
Buy the Buy Weidmueller Ethernet Patch Cable Part Number 1251590005 Online
Purchase the Weidmueller Ethernet Patch Cable Part Number 1251590005 online for reliable high-speed data transfer in industrial networks. This 0.5-meter LSZH green cable offers shielded RJ45 connectors with gold plating, supporting speeds up to 10 GBit/s. Its complete shielding and twisted pair design minimize interference, ensuring stable connections in demanding environments. Certified for flame resistance and compliant with international standards, this cable is ideal for industrial Ethernet, traffic engineering, and robust networking applications. Easy to install, durable, and versatile for various industrial setups.
Get Weidmueller 1251590005 today—designed for high-speed industrial Ethernet connectivity and built for long-lasting durability.
Frequently Asked Questions
Where can I buy WEIDMULLER 1251590005?
You can click on the BUY or RFQ button to purchase 1251590005 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1251590005?
You can download the 1251590005 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1251590005?
WEIDMULLER
