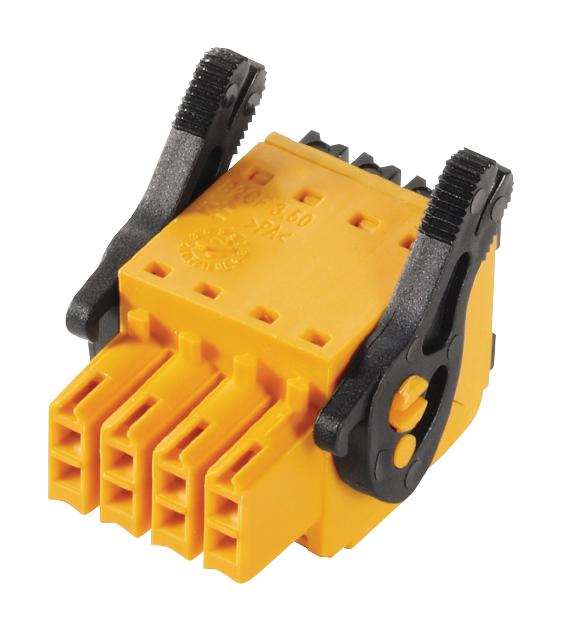

WEIDMULLER 1278230000 Wire Connector
The B2CF 3.50/04/180LR SN BK BX is a two-row female connector designed for secure and easy wire connection using PUSH IN spring technology. It features a pitch of 3.5 mm and supports wire cross-sections of 0.14 mm² to 1.5 mm², compatible with AWG 26 to 16. The connector offers a rated voltage of 320 V and a current of up to 13.4 A, rated for safe finger touch with an IP20 protection class. Its compact, high-density design makes it ideal for PCB and industrial applications, with easy insertion and tool-free locking.
WEIDMULLER 1278230000 Wire Connector Specifications:
- Pitch: 3.5 mm (0.138 inch)
- Number of poles: 4
- Rated voltage: 320 V (IEC), 300 V (UL/CSA)
- Rated current: 13.4 A (IEC), 12-95 A depending on standards
- Wire cross-section: 0.14 mm² to 1.5 mm² (AWG 26 to 16)
- Max. conductor outer diameter: 2.6 mm
- Material: PA 66 GF 30, Copper alloy contact, Tinned surface
- Protection class: IP20, Touch-safe according to DIN VDE 57 106
- Operating temperature: -60°C to 120°C
- Stripping length: 10 mm
- Mechanical: 25 plugging cycles, push-in force: 5 N/pole, withdrawal force: 5 N/pole
- Dimensions: Compact multi-row PCB connector with integrated push-buttons and optional locking
- Flammability: UL 94 V-0
Buy the Buy Weidmüller Female Connector Part Number 1278230000 Online
Order the Weidmüller 1278230000 female connector now for reliable wire-to-board connections. Its PUSH IN spring mechanism ensures easy, tool-free insertion, and its high-density form factor maximizes PCB space. Suitable for up to 1.5 mm² wires, it is rated at 320 V and 13.4 A, making it ideal for industrial and automation applications. With IP20 protection, it offers safety and durability, supported by UL, IEC, and CSA standards for quality assurance. Simplify your wiring process with this efficient, robust connector, available for online purchase today.
Get Weidmüller 1278230000 today—designed for secure and easy wire connections with high component density and tool-free locking.
Frequently Asked Questions
Where can I buy WEIDMULLER 1278230000?
You can click on the BUY or RFQ button to purchase 1278230000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1278230000?
You can download the 1278230000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1278230000?
WEIDMULLER
