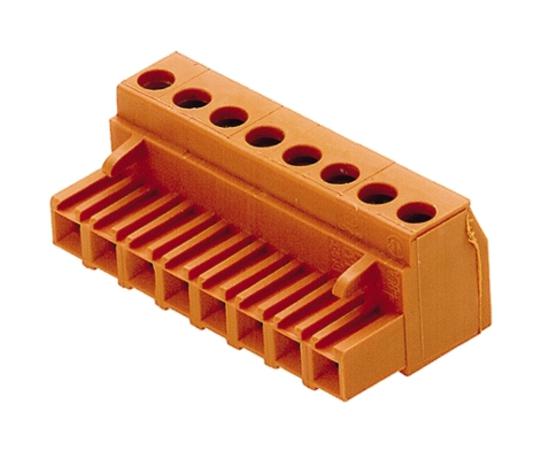

WEIDMULLER 1282560000 Industrial Signal Connector
The BLA 10SNOR is a 5.08 mm pitch female PCB connector featuring a vibration-proof screw connection via clamping yoke, secure pin arrangement, and coding options. It provides a reliable connection for industrial automation, with a max clamping range of 3.32 mm, and is suitable for various wire sizes from AWG 28 to AWG 16. Its compact design measures 50.8 mm wide, 15.2 mm high, and 20 mm deep, with a rated current of 17.5A at 400V. Constructed with high-quality insulation and contact materials, it ensures safety and durability in demanding environments.
WEIDMULLER 1282560000 Industrial Signal Connector Specifications:
- Width: 50.8 mm
- Height: 15.2 mm
- Depth: 20 mm
- Material: PBT GF Insulating, CuSn Contact, Tinned Surface
- Rated Voltage: 400V / 300V (UL & CSA)
- Rated Current: 17.5A (IEC), 10A (UL & CSA)
- Clamping Range: 0.13 mm to 3.32 mm
- Wire Cross-Section: AWG 28 to AWG 16 / 0.2 mm² to 2.5 mm²
- Pin Pitch: 5.08 mm
- Number of Poles: 10
- Connection: Clamping yoke
- Temperature Range: -25°C to 120°C
- Flammability Rating: UL 94 V-0
- CTI: >200
- Storage Temperature: -40°C to 70°C
- Operating Temperature: -25°C to 120°C
- Certifications: UL, CSA, RoHS compliant
Buy the Weidmiiller BLA 10SNOR – Reliable PCB Connection for Industrial Applications
Enhance your industrial wiring setup with the Weidmiiller BLA 10SNOR connector, offering a secure, vibration-proof screw connection and easy wiring. Its 5.08 mm pitch and 10-pole design provide reliable signal and power transfer, suitable for automation, control panels, and manufacturing systems. Crafted with high-quality materials, it guarantees safety and durability even in demanding environments. Simplify your installation process by ordering this top-grade connector online and ensure long-term operational reliability for your industrial applications.
Buy Weidmiiller BLA 10SNOR now and experience unmatched reliability and performance in automation and wiring systems.
Frequently Asked Questions
Where can I buy WEIDMULLER 1282560000?
You can click on the BUY or RFQ button to purchase 1282560000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1282560000?
You can download the 1282560000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1282560000?
WEIDMULLER
