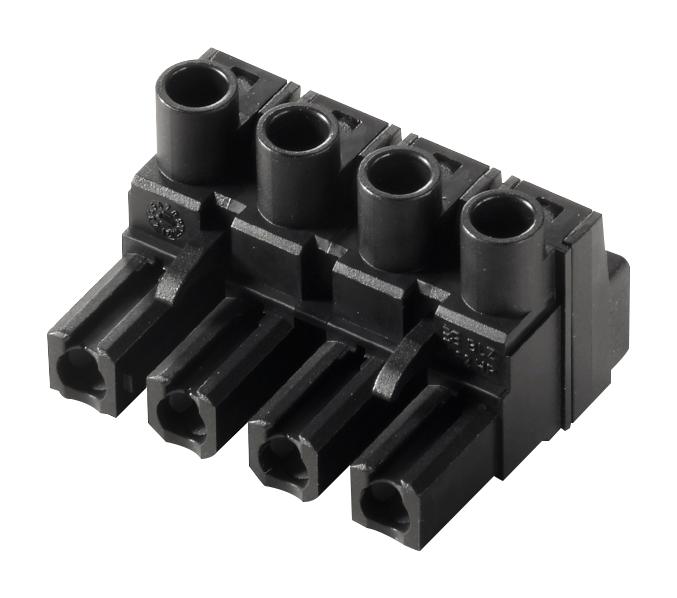

WEIDMULLER 1049010000 Power Female Header
The Weidmüller BL/SL 7.62HP series high-performance female header is designed for UL applications up to 600V and 29A. It features a compact, space-saving design with a 7.62 mm pitch and a clamping yoke connection for reliable wire termination. Suitable for low-voltage device integration, it supports wire cross-sections from 0.2 mm² to 4 mm² (AWG 28-12), with a touch-safe design compliant with IEC 68 100-5-1 safety standards. Ideal for industrial automation, electronics, and control panel applications requiring robust, secure connections and compliance with UL, IEC, and CSA standards.
WEIDMULLER 1049010000 Power Female Header Specifications:
- Pitch: 7.62 mm (0.3 inch)
- Number of poles: 5
- Rated voltage: 630 V IEC, 600 V UL
- Rated current: 29 A IEC, 20 A UL
- Wire cross-section: 0.2 - 4 mm² (AWG 28 - 12)
- Connection type: Clamping yoke connection
- Clamping range: Max. 4 mm²
- Material: PBT, contact material: copper alloy, tin-plated
- Touch-safe protection: compliant with IEC 68 100-5-1
- Flammability rating: UL 94 V-0
- Insulation resistance: 210 MΩ
- Operating temperature: -60°C to 100°C
- Storage temperature: -25°C to 55°C
- Creepage distance: 11.3 mm
- Clearance: 9.8 mm
Buy the Buy Weidmüller Power Series Female Header Part Number 1049010000 Online
Enhance your automation projects with the Weidmüller Power Female Header. This high-quality connector offers UL and IEC compliance, supporting wire sizes from 0.2 mm² to 4 mm² for secure, safe, and reliable electrical connections. With a compact 7.62 mm pitch and a clamping yoke connection, it ensures easy installation and durable performance in control systems and industrial environments. Perfect for low-voltage applications up to 600V and 29A, this connector is a smart choice for engineers seeking efficiency and safety.
Get Weidmüller 1049010000 today—designed for reliable connections in automation and control panels requiring UL and IEC safety standards.
Frequently Asked Questions
Where can I buy WEIDMULLER 1049010000?
You can click on the BUY or RFQ button to purchase 1049010000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1049010000?
You can download the 1049010000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1049010000?
WEIDMULLER
