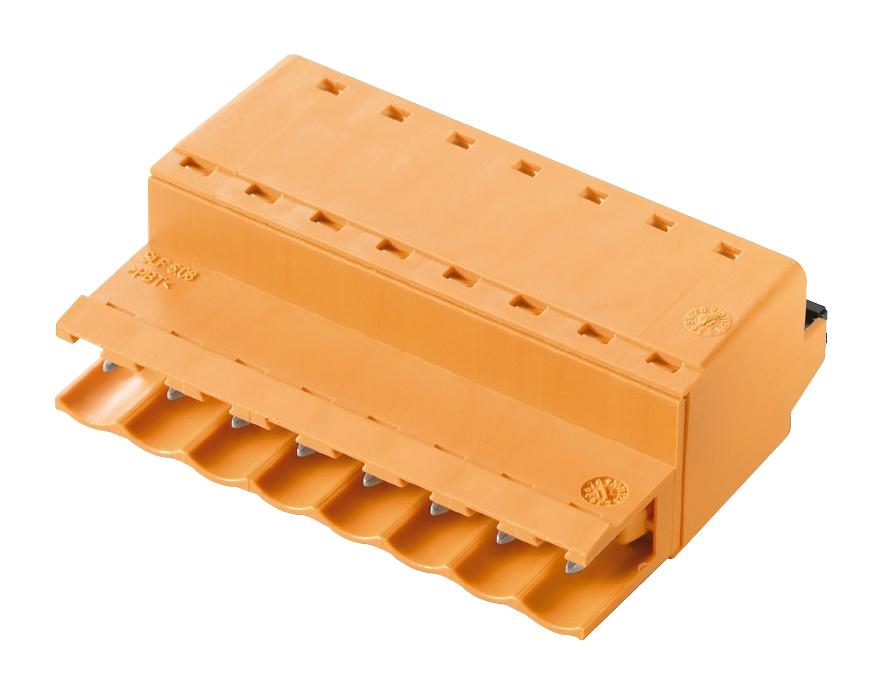

WEIDMULLER 1335360000 PCB Plug Connector

WEIDMULLER 1335360000 PCB Plug Connector Specifications:

• Type: SLF 5.08/05/180 SN OR BX
• Order No.: 1335360000
• Version: PCB plug-in connector, male plug, 5.08 mm, No. of poles: 5, 180°, PUSH IN
• Clamping range max: 3.31 mm²
• GTIN(EAN): 4050118140576
• Quantity: 72pc(s)
• Product data IEC: 400 V / 25.9 A / 0.2 - 2.5 mm²
• Product data UL: 300 V/14 A/AWG 26 - AWG 12
• Packaging: Box
• Pitch in mm(P): 5.08 mm
• Conductor outlet direction: 180°
• L1 in mm: 20.32 mm
• Pin seriesquantity: 1
• Touch-safe protection: DIN VDE 57 106
• Finger-safe: Plugged/back-of-hand-safe unplugged
• Can be coded: Yes
• Screwdriver blade: 0.6 x 3.5
• Plugging cycles: 25
• Wire connection method: PUSH IN
• Pitch in inches(P): 0.2 inch
• No. of poles: 5
• L1 in inches: 0.8 inch
• Rated cross-section: 2.5 mm²
• Volume resistance: 4.50 mΩ
• Strippinglength: 10 mm
• Screwdriver blade standard: DIN 5264
• Insulating material: PBT
• Colour: Orange
• Colour chart (similar): RAL 2000
• Insulation resistance: ≥ 108Ω
• UL 94 flammability rating: V-0
• Contact material: CuSn
• Layer structure of plug contact: 4-8µm Sn hot-diptinned
• Storage temperature min: -25 °C
• Storage temperature max: 55 °C
• Max relative humidity during storage: 80 %
• Operating temperature min: -50 °C
• Operating temperature max: 100 °C
• Temperature range installation min: -25 °C
• Temperature range installation max: 100 °C
• Clamping range min: 0.13 mm²
• Wire connection cross section AWG min: AWG 26
• Solid min H05(07)V-U: 0.2 mm²
• Flexible min H05(07)V-K: 0.2 mm²
• w plastic collar ferrule DIN 46228 pt 4 min: 0.2 mm²
• w wire end ferrule DIN 46228 pt 1 min: 0.2 mm²
• Plug gauge acc. to EN 60999 a x b; Ø: 2.8 mm x 2.0 mm
• Wire connection cross section AWG max: AWG 12
• Solid max H05(07)V-U: 2.5 mm²
• Flexible max H05(07)V-K: 2.5 mm²
• w plastic collar ferrule DIN 46228 pt 4 max: 2.5 mm²
• w wire end ferrule DIN 46228 pt 1 max: 2.5 mm²
• Rated current max no. of poles (Tu=20°C): 21.7 A
• Rated current max no. of poles (Tu=40°C): 18.5 A
• Rated voltage for surge voltage class / pollution degree III/2: 320 V
• Rated impulse voltage for surge voltage class/ pollution degree II/2: 4 kV
• Rated impulse voltage for surge voltage class/ contamination degree III/3: 4 kV
• Short-time withstand current resistance: 3 x 1s with 120 A
• Rated current min no. of poles (Tu=20°C): 25.9 A
• Rated current min no. of poles (Tu=40°C): 22.5 A
• Rated voltage for surge voltage class / pollution degree II/2: 400 V
• Rated voltage for surge voltage class / pollution degree III/3: 250 V
• Institute (CSA): Rated voltage(UsegroupB) 300 V
• Certificate No. (CSA): 200039-1121690
• Certificate No. (cURus): E60693
• IPC conformity: Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2".
