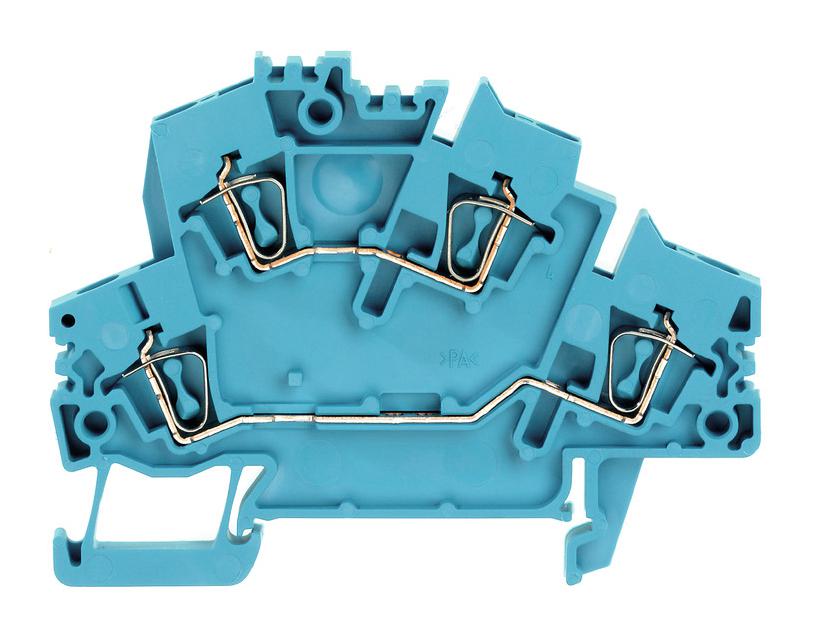

WEIDMULLER 1791000000 Tension Clamp Terminal
The ZDK 2.5-2 BL is a versatile spring connection terminal featuring tension clamp technology suitable for all common conductor types. Designed with a double-tier layout, it supports a maximum wire cross-section of 4 mm² and a rated voltage of 800 V with a current capacity of 24 A. This robust terminal, made from flame-retardant Wemid material with UL 94 V-0 rating, is ideal for industrial automation systems, control panels, and electrical distribution, ensuring secure, flexible, and reliable conductor connections in demanding environments.
WEIDMULLER 1791000000 Tension Clamp Terminal Specifications:
- Width: 5.1mm (0.201 inches)
- Height: 72.5mm (2.854 inches)
- Depth: 54.5mm (2.146 inches), including DIN rail 55.5mm
- Material: Wemid, Flame Rating: UL 94 V-0
- Rated Voltage: 800 V
- Rated Current: 24 A
- Max. Wire Cross Section: 4 mm²
- Clamping Range: 0.05 mm to 4 mm²
- Blade Size: 0.6 x 3.5mm
- Operating Temperature: -25°C to 55°C, Continuous Temp.: 60°C to 130°C
- Certifications: IECEx/ATEX, UL, CSA, RoHS
- Mounting: Snap-on system for TS 35 rail
- Connection Type: Tension-clamp, double-tier, side-entry
- Number of Clamping Points per Level: 2
- Number of Levels: 2
- Wire Connection: Finely stranded or solid wire, AWG 30-14
- Open Sides: Right
- Explosion-tested version
Buy the Weidmueller Series ZDK: Tension Clamp Terminal 1791000000
Enhance your electrical distribution and automation setup with the Weidmueller ZDK 2.5-2 BL tension clamp terminal. Featuring a double-tier, spring-loaded design, it supports wires up to 4 mm², operates reliably at 800 V and 24 A, and offers robust, UL rated flame-retardant construction. Perfect for control panels, industrial automation, and wiring applications, this terminal provides secure, flexible, and easy-to-install conductor connections. Order online today to ensure secure, high-quality electrical installations.
Get Weidmueller ZDK 2.5-2 BL today—built for secure, flexible conductor connections in industrial control panels and automation systems.
Frequently Asked Questions
Where can I buy WEIDMULLER 1791000000?
You can click on the BUY or RFQ button to purchase 1791000000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1791000000?
You can download the 1791000000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1791000000?
WEIDMULLER
