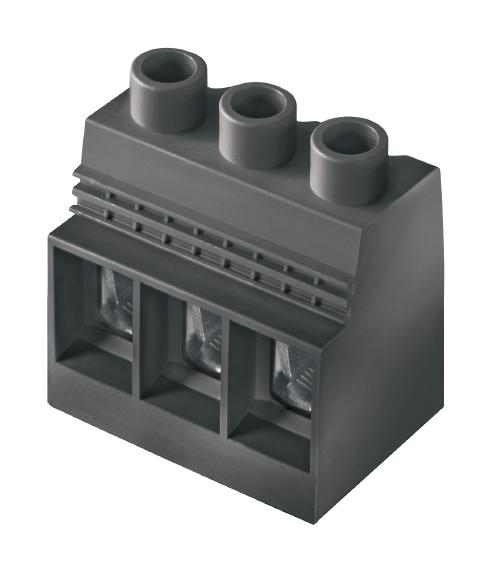

WEIDMULLER 1386400000 Power PCB Connector
The Weidmuller OMNIMATE Power series LXXX connector is a high-current PCB connection solution designed to maximize power on the board. Featuring a compact standard housing and steel clamping-yoke technology, it integrates security, power density, and miniaturization requirements for power electronics. This connector reduces size and complexity while improving application integration, making it suitable for development, production, installation, and maintenance across the value-creation chain. It supports conductors ranging from 0.5 to 50 mm² and is ideal for applications requiring robust and efficient power transmission.
WEIDMULLER 1386400000 Power PCB Connector Specifications:
- Order No.: 1386400000
- Version: Printed circuit board terminals, 15.00 mm
- Number of poles: 6
- Angle: 90°
- Solder pin length (l): 4.5 mm
- Clamping range max: 50 mm²
- GTIN(EAN): 4050118186598
- Quantity: 12pc(s)
- IEC rating: 1000 V / 150 A / 0.5 - 50 mm²
- UL rating: 600 V/126 A/AWG 20 - AWG 1
- Width: 91 mm
- Height: 56 mm
- Height of lowest version: 51.5 mm
- Depth (inches): 1.22 inch
- Width(inches): 3.583 inch
- Height(inches): 2.205 inch
- Depth: 31 mm
- Net weight: 179.47 g
- Mounting: onto the PCB
- Connection type: THT solder connection
- Pitch (P) mm: 15 mm
- Pitch (P) inches: 0.591 inch
- Solder eyelet hole diameter (D): 1.6 mm
- Number of solder pins per pole: 4
- Screwdriver blade standard: DIN 5264
- Tightening torque max: 4 Nm
- Stripping length: 18 mm
- L1 (inches): 2.954 inch
- L1 (mm): 75 mm
- Insulating material: Wemid (PA)
- Colour: black
- Insulating material group: I
- Insulation strength: ≥ 108Ω
- GWFI: 960 °C
- Contact surface: tinned
- Storage temperature min: -40 °C
- Operating temperature min: -50 °C
- Temperature range installation min: -25 °C
- Clampable conductor min: 0.5 mm²
- Clampable conductor max: 50 mm²
- Wire connection cross section AWG min: AWG 20
- Wire connection cross section AWG max: AWG 1
- Solid conductor min: H05(07)V-U 0.5 mm²
- Solid conductor max: H05(07)V-U 16 mm²
- Stranded conductor min: H07V-R 6 mm²
- Stranded conductor max: H07V-R 50 mm²
- Flexible conductor min: H05(07)V-K 0.5 mm²
- Flexible conductor max: H05(07)V-K 35 mm²
- w. plastic collar ferrule min: 0.5 mm²
- w. plastic collar ferrule max: 35 mm²
- w. wire end ferrule min: 0.5 mm²
- w. wire end ferrule max: 35 mm²
