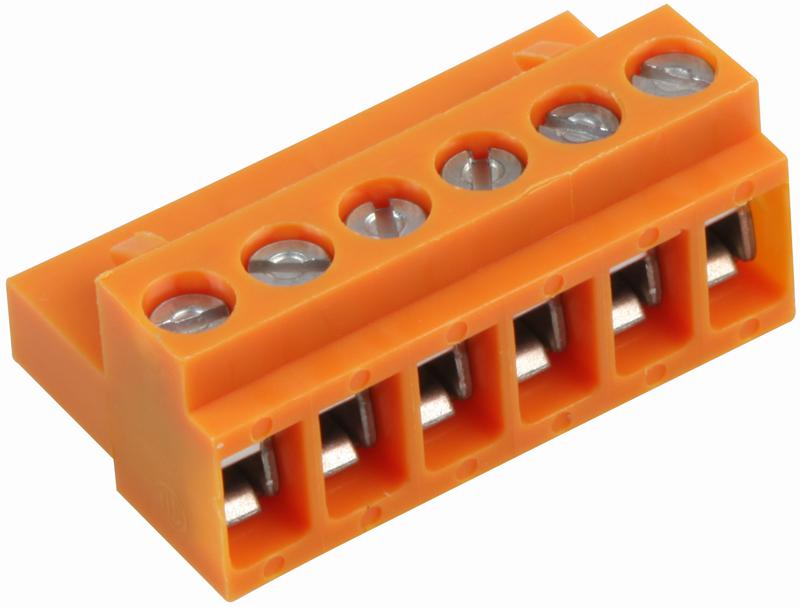

Weidmuller BL5086 Female PCB Connector
The female plugs feature a pressure clamp connection system with a 5.08 mm pitch, 6 poles, and a 180° outlet direction, suitable for PCB mounting. Made from flame-retardant PA, these connectors are rated for 400 V and 10 A, compliant with IEC and UL standards. They are designed for reliable wiring with a clamping range of 0.13 mm to 2.08 mm, supporting flexible and solid conductors from AWG 26 to AWG 14. The contact surface is tin-coated for durability, and the plugs are easy to assemble with a tightening torque of 0.4 to 0.5 Nm.
Weidmuller BL5086 Female PCB Connector Specifications:
- Pitch: 5.08 mm (0.2 inch)
- Number of poles: 6
- Rated voltage: 400 V
- Rated current: 10 A
- Wire cross-section: AWG 26 - AWG 14
- Clamping range: 0.13 mm to 2.08 mm
- Contact material: CuSn, tin-plated
- Insulating material: PA (Polyamide)
- Flammability rating: V2 (UL 94)
- Tightening torque: 0.4 Nm to 0.5 Nm
- Operating temperature: -60°C to 100°C
- Max relative humidity: 80%
- Storage temperature: -25°C to 55°C
- Certifications: IEC, UL, CSA
- Number of wiring cycles: 25
Buy the Weidmueller Series BL/SL 5.08 Female PCB Connector: BL5086
Order the Weidmueller BL5086 female PCB connector online today and benefit from dependable, easy-to-wire connections suitable for industrial electronics. Designed for 6 poles and 5.08 mm pitch, these connectors provide robust contact surfaces, rated for 400 V and 10 A, ensuring durable performance. The pressure clamp system simplifies installation, supporting a wide range of conductor sizes from AWG 26 to AWG 14, and the tin-plated contacts enhance long-term reliability. Ideal for PCB assemblies requiring high safety and compliance standards.
Buy Weidmueller BL5086 now and experience unmatched reliability and performance with high-quality female PCB connectors for secure wiring solutions.
