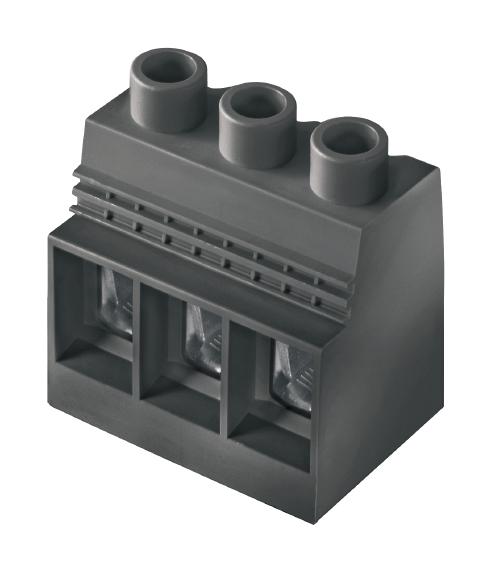

WEIDMULLER 1386550000 Power PCB Connector
The Weidmuller OMNIMATE Power series LXXX connector provides a reliable and efficient solution for high-current PCB connections. Featuring a compact design and steel clamping-yoke technology, it integrates advanced features for security, power density, and miniaturization. This connector is ideal for applications in power electronics, reducing size and complexity while improving application integration. It supports a wide range of conductor sizes and offers a robust connection for demanding industrial environments.
WEIDMULLER 1386550000 Power PCB Connector Specifications:
- Order No.: 1386550000
- Version: Printed circuit board terminals, 15.00 mm
- Number of poles: 7
- Solder pin length (l): 4.5 mm
- Clamping range, max.: 50 mm²
- GTIN(EAN): 4050118186727
- Qty. Product data: 12pc(s). IEC: 1000 V / 150 A / 0.5 - 50 mm²; UL: 600 V/126 A/AWG 20 - AWG 1
- Width: 106 mm
- Height: 56 mm
- Height of lowest version: 51.5 mm
- Depth (inches): 1.22 inch
- Width(inches): 4.173 inch
- Height(inches): 2.205 inch
- Depth: 31 mm
- Net weight: 209.145 g
- Pitch in mm(P): 15 mm
- Solderpin length(l): 4.5 mm
- Solder eyelet hole diameter(D): 1.6 mm
- Number of solderpinsperpole: 4
- Screwdriver blade standard: DIN 5264
- Tightening torque, max.: 4 Nm
- Stripping length: 18 mm
- L1 in inches: 3.545 inch
- Wire connection method: Clamping yoke connection
- Pitch in inches(P): 0.591 inch
- Fitted by customer: No
- Solderpin dimensions: 1.2 x 1.2 mm
- Solder eyelet hole diameter tolerance(D): + 0,1 mm
- Screwdriver blade: 1.2 x 6.5
- Tightening torque, min.: 2.5 Nm
- Clampingscrew: M 6
- L1 in mm: 90 mm
- Insulating material: Wemid(PA)
- Colour chart (similar): RAL 9011
- Comparative Tracking Index (CTI): ≥ 600
- UL 94 flammability rating: V-0
- GWFI: 960 °C
- Contact surface: tinned
- Storage temperature, min.: -40 °C
- Operating temperature, min.: -50 °C
- Temperature range, installation, min.: -25 °C
- Colour: black
- Insulating material group: I
- Insulation strength: ≥ 108Ω
- GWIT: 960 °C
- Contact material: Copper alloy
- Layer structure of solder connection: 1.5...3 µm Ni / 4...6 µm Sn matt
- Storage temperature, max.: 70 °C
- Operating temperature, max.: 120 °C
- Temperature range, installation, max.: 120 °C
- Clamping range, min.: 0.5 mm²
- Wire connection cross section AWG, min.: AWG 20
- Wire connection cross section AWG, max.: AWG 1
- Solid, min. H05(07)V-U: 0.5 mm²
- Solid, max. H05(07)V-U: 16 mm²
- Stranded, min. H07V-R: 6 mm²
- Stranded, max. H07V-R: 50 mm²
- Flexible, min. H05(07)V-K: 0.5 mm²
- Flexible, max. H05(07)V-K: 35 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.: 0.5 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, max.: 35 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.: 0.5 mm²
- w. wire end ferrule, DIN 46228 pt 1, max.: 35 mm²
