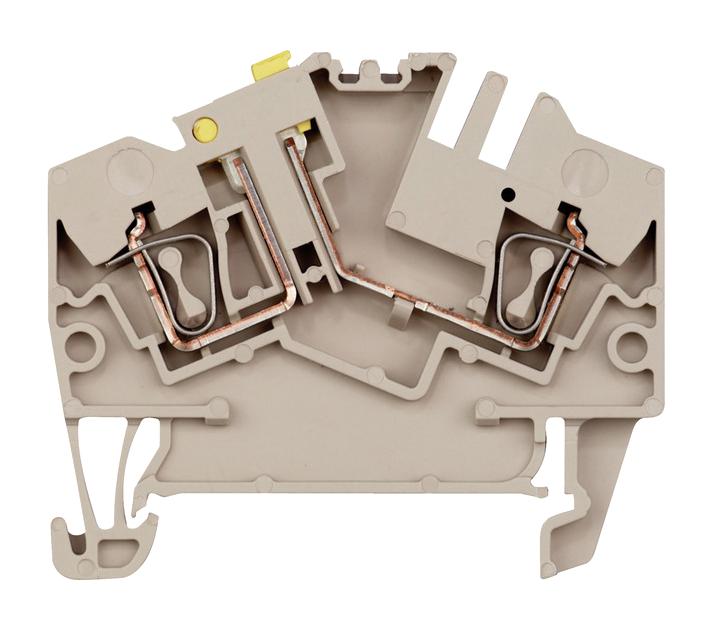

WEIDMULLER 1779010000 ZTR 2.5-2 Terminal Block

WEIDMULLER 1779010000 ZTR 2.5-2 Terminal Block Specifications:

• Type: ZTR 2.5-2
• Order No.: 1779010000
• Version: Tension-clamp connection, Spacer, for plug-in cross-connector, One end without connector
• GTIN(EAN): 4032248184552
• Qty.: 50 pc(s).
• Width: 5.1 mm
• Height: 50.5 mm
• Depth: 43.5 mm
• Depth including DIN rail: 44 mm
• Width(inches): 0.201 inch
• Height(inches): 1.988 inch
• Depth(inches): 1.713 inch
• Net weight: 4 g
• Storage temperature,max.: 55 °C
• Storage temperature: -25 °C...55 °C
• Continuous operating temp., max.: 120 °C
• Storage temperature,min.: -25 °C
• Continuous operatingtemp.,min.: -50 °C
• Material: Wemid
• UL 94 flammability rating: V-0
• Colour: dark beige
• Number ofpotentials: 1
• Number of clamping pointsper level: 2
• Levels cross-connected internally: No
• Rail: TS 35
• PE function: No
• End cover plate required: Yes
• Number of levels: 1
• Number ofpotentialsper tier: 1
• PE connection: No
• N-function: No
• PEN function: No
• Explosion-tested version: No
• Open sides: right
• Installation advice: Direct mounting
• Type of mounting: Snap-on
• Certificate No.(CSA): 200039-1152892
• Current size C(CSA): 10 A
• Voltage size B(CSA): 300 V
• Voltage size D(CSA): 300 V
• Wire cross section min. (CSA): 26 AWG
• Current size B(CSA): 10 A
• Current size D(CSA): 10 A
• Voltage size C(CSA): 300 V
• Wire cross section max.(CSA): 12 AWG
• Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: 1.5 mm²
• Blade size: 0.6 x 3.5 mm
• Clampingrange,min.: 0.13 mm²
• Gauge to IEC 60947-1: A2
• Strippinglength: 10 mm
• Wire connection cross section AWG,max.: AWG 12
• Wire connection cross-section, finely stranded, max.: 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1,min.: 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,min.: 0.5 mm²
• Wire connection cross-section, solid core, max.: 2.5 mm²
• Clampingrange,max.: 2.5 mm²
• Connection direction: Inclined/angled
• Number of connections: 2
• Type of connection: Tension-clampconnection
• Wire connection cross section AWG,min.: AWG 26
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1,max.: 1.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,max.: 1.5 mm²
• Wire connection cross-section, finely stranded, min.: 0.5 mm²
• Wire connection cross-section, solid core, min.: 0.5 mm²
• Cross-disconnect: without
• Slitting: Pivoting
• Integral test socket: No
• Rated cross-section: 2.5 mm²
• Rated current: 10 A
• Standards: IEC 60947-7-1
• Power loss in accordance with IEC 60947-7-x: 0.77 W
• Pollution severity: 3
• Rated voltage: 400 V
• Current at maximum wires: 21 A
• Volume resistance according to IEC 60947-7-x: 1.33 mΩ
• Rated impulse withstand voltage: 6 kV
• Certificate No.(UR): E60693
• Conductor size Factorywiringmin.(UR): 26 AWG
• Conductor size Field wiringmin.(UR): 26 AWG
• Voltage size D (UR): 300 V
• Conductor size Factorywiringmax.(UR): 12 AWG
• Conductor size Field wiringmax.(UR): 12 AWG
• Current size D(UR): 10 A
• ETIM 6.0: EC000902
• eClass 9.0: 27-14-11-26
• eClass 10.0: 27-14-11-26
• ETIM 7.0: EC000902
• eClass 9.1: 27-14-11-26
• UNSPSC: 30-21-18-11
