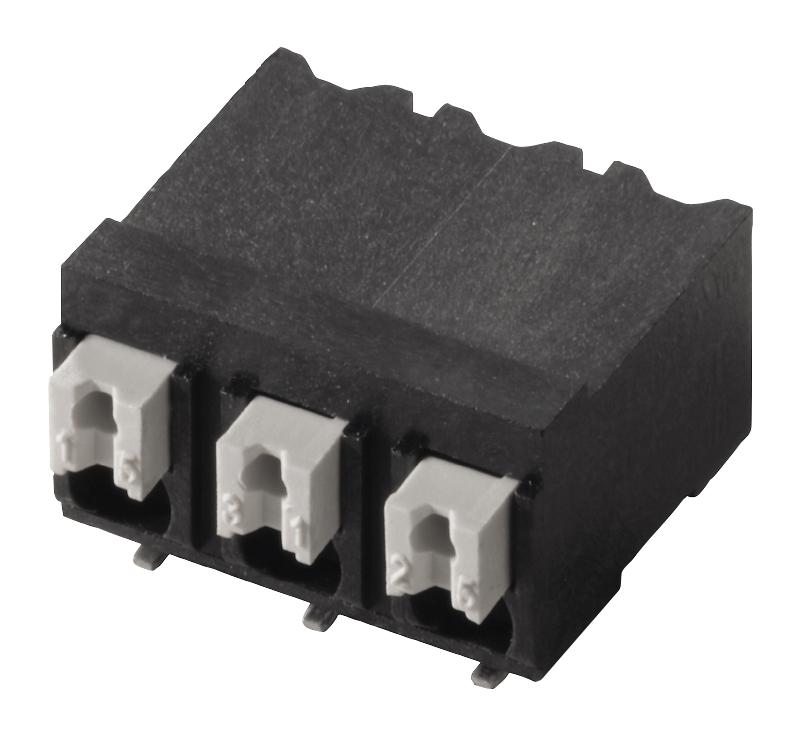

WEIDMULLER 1473830000 Signal Connector
The Weidmuller OMNIMATE Signal LSF-SMD 5.00/08/90 SN BK RL is a PCB terminal designed for fully automatic assembly using reflow soldering. It utilizes PUSH IN wire connections, allowing for easy and tool-less connection and detachment of solid wires or wires with wire-end ferrules. The terminal's intuitive handling, with clearly separated wire-entry and handling areas, simplifies the connection process. Suitable for a vast range of industrial applications, this connector offers a robust and efficient solution for PCB assembly.
WEIDMULLER 1473830000 Signal Connector Specifications:
- Type: LSF-SMD 5.00/08/90 SN BK RL
- Order No.: 1473830000
- Version: PCB terminal, 5.00 mm, No. of poles: 8, 90°, Black, PUSH IN, Clamping range, max. : 1.5 mm², Tape
- GTIN(EAN): 4050118280395
- Qty.: 320pc(s).
- Product data IEC: 500 V / 17.5 A / 0.2 - 1.5 mm²
- Product data UL: 300 V/12 A/AWG 24 - AWG 16
- Packaging: Tape (Ø 330 mm); Rs = 109- 1012Ω
- Pitch in mm(P): 5 mm
- No. of poles: 8
- Strippinglength: 8 mm
- L1 in inches: 1.378 inch
- Conductor outlet direction: 90°
- Number of solderpinsperpole: 2
- L1 in mm: 35 mm
- Insulatingmaterial: LCP GF
- Colour: Black
- CTI: ≥ 175
- Moisture Level(MSL): 1
- Contact material: Copper alloy
- Insulatingmaterialgroup: IIIa
- Insulation resistance: ≥ 108Ω
- UL 94 flammabilityrating: V-0
- Layer structure of solder connection: 4-6µm Sn matt
- Clampingrange,min.: 0.13 mm²
- Wire connection cross section AWG,min.: AWG 24
- Clampingrange,max.: 1.5 mm²
- Wire connection cross section AWG,max.: AWG 16
- Rated current, max. no. of poles (Tu=20°C): 17.5 A
- Rated voltage for surge voltage class / pollution degree III/2: 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2: 4 kV
- Short-time withstand current resistance: 3 x 1s with 80 A
- Rated data acc. to CSA: Specifications are maximum values
- Rated data acc. to UL 1059: Specifications are maximum values
- ETIM 3.0: EC001284
- ETIM 5.0: EC002643
- eClass 6.2: 27-26-11-01
- eClass 8.1: 27-44-04-01
- eClass 9.1: 27-44-04-01
