WEIDMULLER 1473940000 Signal Connector

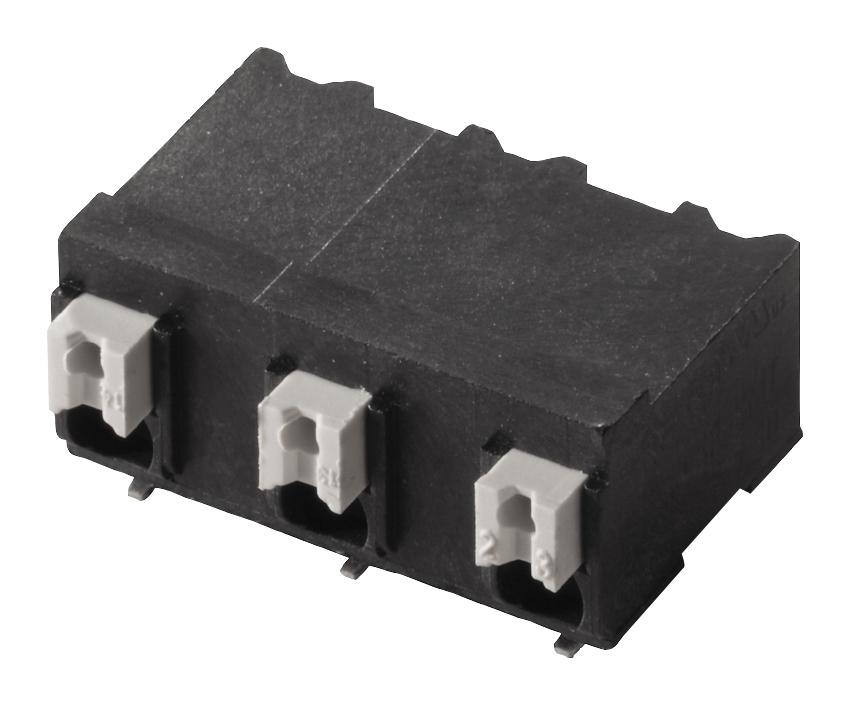

The Weidmuller OMNIMATE Signal LSF-SMD 7.50/02/90 SN BK RL is a PCB terminal designed for automated reflow soldering and utilizes PUSH IN wire connection technology. This innovative design allows for simple, safe, and economical connections, eliminating the need for tools. The terminal’s intuitive handling, with clearly separated wire-entry and handling areas, simplifies the connection process. It’s ideal for applications requiring high reliability and automated assembly, such as industrial automation, power supplies, and control systems. The terminal offers a clamping range of 0.13-1.5 mm² and supports various conductor types, including solid, stranded, and ferrules.
WEIDMULLER 1473940000 Signal Connector Specifications:
- Type: LSF-SMD 7.50/02/90 SN BK RL
- Order No.: 1473940000
- Version: PCB terminal, 7.50 mm, No. of poles: 2, 90°, Black, PUSH IN, Clamping range, max. : 1.5 mm², Tape (Ø 330 mm); Rs = 109- 1012Ω
- GTIN(EAN): 4050118280890
- Qty.: 320pc(s).
- Product data IEC: 800 V / 17.5 A / 0.2 - 1.5 mm²
- Product data UL: 300 V/12 A/AWG 24 - AWG 16
- Packaging: Tape (Ø 330 mm); Rs = 109- 1012Ω
- Pitch in mm(P): 7.5 mm
- No. of poles: 2
- Conductor outlet direction: 90°
- Strippinglength: 8 mm
- L1 in mm: 7.5 mm
- Insulatingmaterial: LCP GF
- Colour: Black
- CTI: ≥ 175
- Moisture Level(MSL): 1
- Contact material: Copper alloy
- Storage temperature,min.: -25 °C
- Max. relative humidityduringstorage: 80 %
- Operatingtemperature,max.: 120 °C
- Temperature range, installation, max.: 120 °C
- Clampingrange,min.: 0.13 mm²
- Wire connection cross section AWG,min.: AWG 24
- Clampingrange,max.: 1.5 mm²
- Wire connection cross section AWG,max.: AWG 16
- Rated current, max. no. of poles (Tu=20°C): 17.5 A
- Rated voltage for surge voltage class / pollution degree III/2: 630 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2: 6 kV
- Short-time withstand current resistance: 3 x 1s with 80 A
- Rated data acc. to CSA Certificate No. (CSA): 200039-1664286
- Rated data acc. to UL 1059 Certificate No. (cURus): E60693
- ETIM 3.0: EC001284
- ETIM 5.0: EC002643
- eClass 6.2: 27-26-11-01
- eClass 8.1: 27-44-04-01
- eClass 9.1: 27-44-04-01
