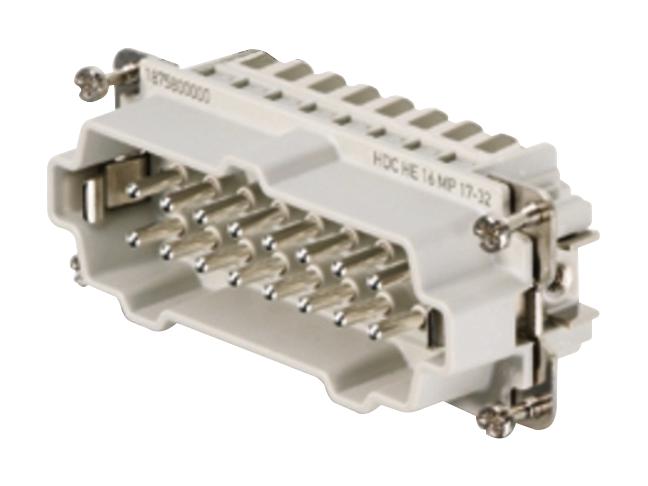

WEIDMULLER HDCHE16MP1732 Push-In Connector
The HDC HE 16 MP 17-32 is a male insert featuring PUSH IN technology for direct wire connection without tools, rated for 500 V and 16 A. It is designed with 16 poles, size 6, and includes silver passivated copper alloy contacts, ensuring high durability with up to 2500 plugging cycles. Made of PC glass-fibre reinforced insulation, it withstands temperatures from 40°C to 125°C. Its compact dimensions include a length of 84.5 mm, width 34 mm, and height 34.3 mm, making it suitable for efficient, space-saving wiring in industrial control systems.
WEIDMULLER HDCHE16MP1732 Push-In Connector Specifications:
- Rated voltage: 500 V
- Rated current: 16 A
- Number of poles: 16
- Size: 6
- Maximum plugging cycles: 2500
- Insulating material: PC glass-fibre reinforced
- Contact material: Copper alloy, silver passivated
- Connecting method: PUSH IN
- Wire connection: Finely stranded, max. 2.5 mm², min. 0.5 mm², AWG 20–12
- Temperature range: 40°C to 125°C
- Dimensions: Length 84.5 mm, Width 34 mm, Height 34.3 mm
- Total weight: 789 g
- Surface finish: Silver passivated
- Certifications: UL listed, railway-certified
Buy the Buy Weidmueller HDC HE 16 MP 17-32 Part Number 1875800000 Online
Purchase the Weidmueller Push-In Connector HDC HE 16 MP 17-32 online for fast, tool-free wire connections in industrial control panels. Its robust copper alloy contacts and high temperature resistance ensure dependable performance, while its compact size makes installation efficient. With a rated voltage of 500 V and current of 16 A, it supports demanding industrial applications. Enjoy quick installation, superior durability, and excellent electrical contact, all available at your fingertips for seamless wiring and maintenance.
Buy Weidmueller HDC HE 16 MP 17-32 now and experience unmatched reliability and high-performance direct wiring connection solutions.
Frequently Asked Questions
Where can I buy WEIDMULLER HDCHE16MP1732?
You can click on the BUY or RFQ button to purchase HDCHE16MP1732 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part HDCHE16MP1732?
You can download the HDCHE16MP1732 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of HDCHE16MP1732?
WEIDMULLER
