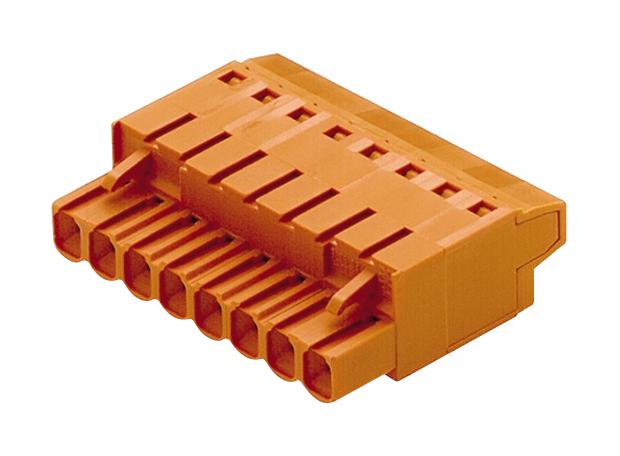

WEIDMULLER 1499860000 5.08mm Pitch Female Connector
The WEIDMULLER 1499860000 is a PCB plug-in connector, a female plug with a 5.08mm pitch and a TOP screw connection system. It's designed for connecting wires with a straight 180° outlet direction and offers space for labelling and coding. The connector is suitable for applications requiring high current capacity and reliable connections. It is commonly used in industrial automation, control systems, and power distribution panels where secure and organized wiring is essential. The HC (High Current) designation indicates its ability to handle higher current loads, making it ideal for demanding electrical environments.
WEIDMULLER 1499860000 5.08mm Pitch Female Connector Specifications:
- Base Material: PBT
- Color: Orange
- Contact Material: CuSn
- Contact Plating: 4-8µm Sn hot-diptinned
- Operating Temperature Max: 100 °C
- Operating Temperature Min: -50 °C
- Insulation Resistance: ≥ 108Ω
- Flammability Rating: V-0
- Stripping Length: 13 mm
- Pitch: 5.08 mm
- Number of Poles: 5
- Clamping Range Min: 0.13 mm²
- Clamping Range Max: 2.5 mm²
- Solid Wire Min: 0.2 mm²
- Flexible Wire Max: 1.5 mm²
- Tightening Torque Min: 0.4 Nm
- Tightening Torque Max: 0.5 Nm
- Rated Voltage IEC: 400 V
- Rated Current IEC: 27 A
- Rated Voltage UL: 300 V
- Rated Current UL: 17 A
- UL File Number: E60693
- Short-Time Withstand Current: 100 A
- Touch-Safe Protection: Yes
- Crimp Form: A (PZ 6/5)
