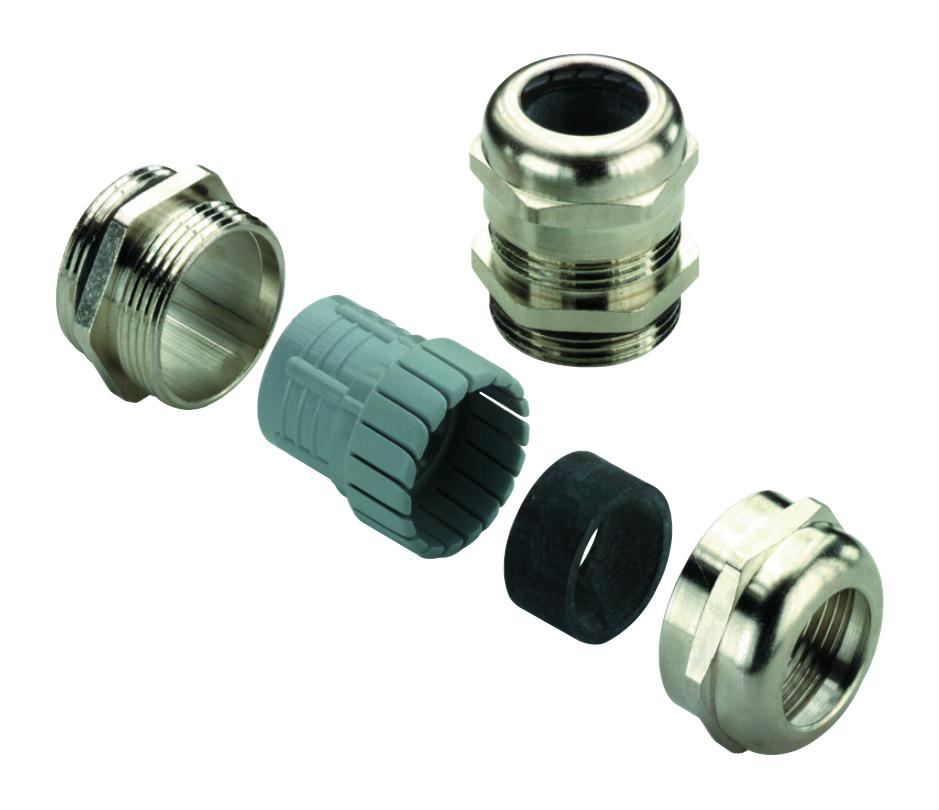

Weidmuller VGM32MS68 Industrial Cable Gland
The cable gland VG M32 - MS 68 from Weidmueller offers a robust and reliable sealing solution for industrial wiring applications. Made from nickel-plated brass, it features various protection levels including IP68 for submersion up to 5 bar (30 min.) and IP69K for high-pressure cleaning environments. Suitable for cables with outer diameters from 13mm to 18mm, it has a 9mm threaded length and is designed for high demanding industrial settings. Its sealing capabilities, material durability, and wide protection ratings make it ideal for a variety of industrial environments requiring secure and sealed cable connections.
Weidmuller VGM32MS68 Industrial Cable Gland Specifications:
- Material: Brass, nickel-plated
- Thread Size: M32
- Thread Length: 9mm
- Outer Cable Diameter Range: 13mm - 18mm
- Protection Ratings: IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K
- Operating Temperature Range: -40°C to +100°C
- Clamp Insert: Polyamide
- Seal Material: NBR
- Outer Dimensions: Length 42mm, Diameter fit range 13-18mm
- Net Weight: 87.449 grams
- Torque for Cap Nut: Max 18 Nm, Min 16 Nm
- Protection Degree with GWDR: IP54, IP66, IP67, IP68-5 bar (30 min.), IP69K
Buy the Weidmueller VGM32MS68 – Reliable Cable Gland for Industrial Applications
Order the Weidmueller VGM32MS68 cable gland online today for secure, durable sealing in industrial applications. Constructed from nickel-plated brass, it offers IP68 and IP69K ratings for maximum protection against water and dust ingress. Suitable for cables with diameters from 13mm to 18mm, it features a 9mm threaded length for easy installation. Trusted by professionals, this cable gland ensures a reliable connection in harsh environments, providing long-lasting performance and peace of mind for your industrial wiring needs.
Get Weidmueller VGM32MS68 today—built for secure sealing and high protection in demanding industrial environments.
Frequently Asked Questions
Where can I buy Weidmuller VGM32MS68?
You can click on the BUY or RFQ button to purchase VGM32MS68 from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part VGM32MS68?
You can download the VGM32MS68 datasheet or visit the Weidmuller website for support.
Who is the manufacturer of VGM32MS68?
Weidmuller
