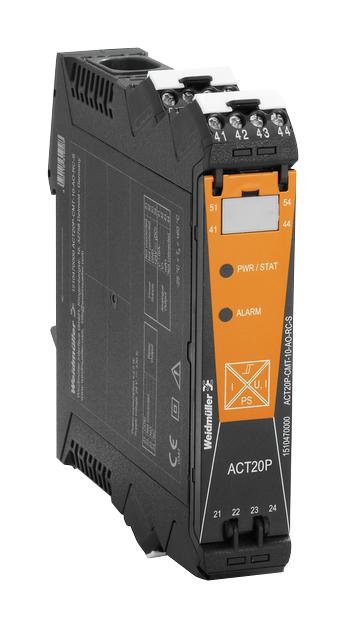

WEIDMULLER 1510440000 Current Monitoring Signal Converter
The Weidmuller ACT20P is a versatile signal converter specifically engineered for current monitoring tasks. This device offers precise and highly functional signal conversion with a simple configuration process, achievable through a display (Pro DCDC II), FDT/DTM software, or a DIP switch. It allows for space-saving installation in control cabinets, requiring only 12.5 mm of width for two channels. The ACT20P provides a configurable input measurement range of 0…40/50/60 A AC or DC and features galvanic isolation between input, output, supply, and relay. It is ideal for industrial applications requiring accurate current monitoring and signal conversion.
WEIDMULLER 1510440000 Current Monitoring Signal Converter Specifications:
- width: 22.5 mm
- height: 117.2 mm
- depth: 113.6 mm
- net_weight: 158 g
- width_inches: 0.886 inch
- height_inches: 4.614 inch
- depth_inches: 4.472 inch
- humidity: 5...95 %,no condensation
- operating_temperature_min: -25 °C
- storage_temperature_min: -40 °C
- storage_temperature_max: 85 °C
- operating_temperature_max: 60 °C
- mtTF: 158 Years
- number_of_inputs: 1
- input_measurement_range: configurable, 0…40/50/60 A AC or DC
- input_signal: Current-carrying cable in feed-through hole, Diameter 10.5 mm
- input_frequency_ac: 15…700 Hz (true root mean square)
- input_frequency_ac_arithmetic: 50 Hz
- accuracy: < 0.75 % FSR, < 1.5 % FSR with measurement range 50/60 A AC
- galvanic_isolation: 4-way isolator; between input ⁄ output ⁄ supply ⁄ relay
- power_consumption_max: 2.2 W
- supply_voltage: 16,8 V…31,2 V
- configuration: DIP switch and potentiometer
- mounting_rail: TS 35
- step_response_time_rms: ≤ 300 ms
- step_response_time_aa: ≤ 60 ms
- temperature_coefficient: 0.01%/K @ 0…40 A, 0.10%/K @ 40…55 A, 0.30%/K @ 55…60 A
- emc_standards: IEC 61326-1, IEC 61010-2-201
- impulse_withstand_voltage: 6.4 kV(1.2/50µs)
- pollution_severity: 2
- surge_voltage_category: III
- insulation_voltage: 4 kVeff/ 1 min.
- rated_voltage: 300 V ACrms
- test_voltage: 4 kV
- load_resistance_current: ≤ 600 Ω
- output_current: adjustable, 0...20 mA, 4...20 mA,-20…+20 mA
- load_resistance_voltage: ≥ 10 kΩ
- output_voltage: adjustable, 0...10 V, 2…10 V, 0...5 V, 1...5 V, -5…+5 V, -10...+10 V
- alarm_function: Surge current, Under-current, Alarm delay: 0…10 s, Hysteresis 5%/10%
- number_of_digital_outputs: 1
- max_switching_voltage_ac: 250 V
- max_switching_voltage_dc: 24 V
- rated_switching_current: 6 A
- type_of_connection: Screw connection
- tighteningtorque_max: 0.6 Nm
- clampingrange_min: 0.5 mm²
- wire_connection_cross_section_awg_min: AWG 30
- tighteningtorque_min: 0.4 Nm
- clampingrange_rated_connection: 1.5 mm²
- clampingrange_max: 2.5 mm²
- wire_connection_cross_section_awg_max: AWG 14
- etim_5_0: EC002048
- eclass_6_2: 27-21-09-02
- eclass_8_1: 27-21-09-02
- etim_6_0: EC002475
- eclass_7_1: 27-21-09-02
- eclass_9_1: 27-21-01-23
- eclass_9_0: 27-21-09-02
