WEIDMULLER 1510710000 Signal Connector

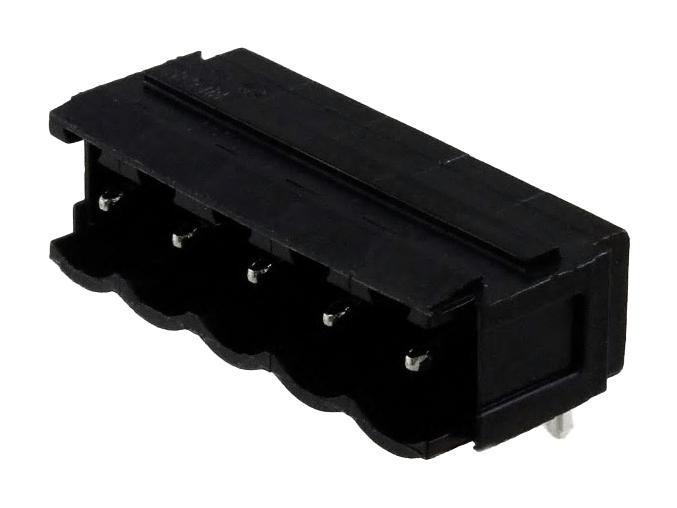

WEIDMULLER 1510710000 Signal Connector Specifications:

• Deliverystatus: This article will no longer be available in the future.
• Available until: 2023-12-31
• Type: SL 5.08/06/90B 3.2SN BK BX
• Order No.: 1510710000
• Version: PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection
• Number of poles: 6
• Solder pin length (l): 3.2 mm
• Color: black
• Box: Packaging
• GTIN(EAN): 4008190244385
• Quantity: 50pc(s)
• Product data: IEC: 400V/18A, UL: 300 V/15 A
• Width: 32.48 mm
• Height: 11.6 mm
• Height of lowest version: 8.4 mm
• Depth (inches): 0.472 inch
• Width(inches): 1.279 inch
• Height(inches): 0.457 inch
• Depth: 12 mm
• Net weight: 2.38 g
• Pitch in inches(P): 0.2 inch
• Tolerance of solderpinposition: ± 0.1 mm
• Solderpin dimensions = d tolerance: 0/-0,03 mm
• Solder eyelet hole diameter tolerance(D): + 0,1 mm
• L1 in inches: 1 inch
• Pin series quantity: 1
• Touch-safe protection acc. to DIN VDE: 0470
• IP20plugged: Yes
• Can be coded: Yes
• Type of connection: Board connection
• Pitch in mm(P): 5.08 mm
• Outgoingelbow: 90°
• Number of solderpinsperpole: 1
• Solderpin length tolerance: +0.1/-0.3 mm
• Solderpin dimensions: d = 1.2 mm,Octagonal
• Solder eyelet hole diameter(D): 1.3 mm
• L1 in mm: 25.4 mm
• Number of rows: 1
• Volume resistance: 4.50 mΩ
• Plugging cycles: 25
• Insulatingmaterial: PBT
• Colour chart(similar): RAL 9011
• Comparative Tracking Index (CTI): ≥ 200
• UL 94 flammabilityrating: V-0
• Contact base material: CuSn
• Contact surface: tinned
• Layer structure of plug contact: 1...3 µm Ni / 2...4 µm Sn
• Storage temperature,max.: 70 °C
• Operatingtemperature,max.: 100 °C
• Temperature range, installation, max.: 100 °C
• Insulatingmaterialgroup: IIIa
• Insulation strength: ≥ 108Ω
• GWFI: 960 °C
• Contact material: CuSn
• Layer structure of solder connection: 1...3 µm Ni / 2...4 µm Sn
• Storage temperature, min.: -40 °C
• Operatingtemperature,min.: -50 °C
• Temperature range,installation,min.: -25 °C
• Rated current, max. number of poles (Tu=20°C): 14.5 A
• Rated current, max. number of poles (Tu=40°C): 12 A
• Rated voltage for surge voltage class / pollution degree III/2: 320 V
• Rated impulse voltage for surge voltage class/ pollution degree II/2: 4 kV
• Rated impulse voltage for surge voltage class/ contamination degree III/3: 4 kV
• Rated current, min. number of poles (Tu=20°C): 18 A
• Rated current, min. number of poles (Tu=40°C): 15 A
• Rated voltage for surge voltage class / pollution degree II/2: 400 V
• Rated voltage for surge voltage class / pollution degree III/3: 250 V
• Short-time withstand current resistance: 3 x 1s with 120 A
• Institute (CSA): Rated voltage(UsegroupB/CSA) 300 V, Rated current(UsegroupB/CSA) 15 A, Certificate No. (CSA) 200039-1121690, Rated voltage(UsegroupD/CSA) 300 V, Rated current(UsegroupD/CSA) 10 A
• Institute (UR): Rated voltage(UsegroupB/UL 1059) 300 V, Rated current(UsegroupB/UL 1059) 15 A, Certificate No. (UR) E60693, Rated voltage(UsegroupD/UL 1059) 300 V, Rated current(UsegroupD/UL 1059) 10 A
• IPC conformity: Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610
