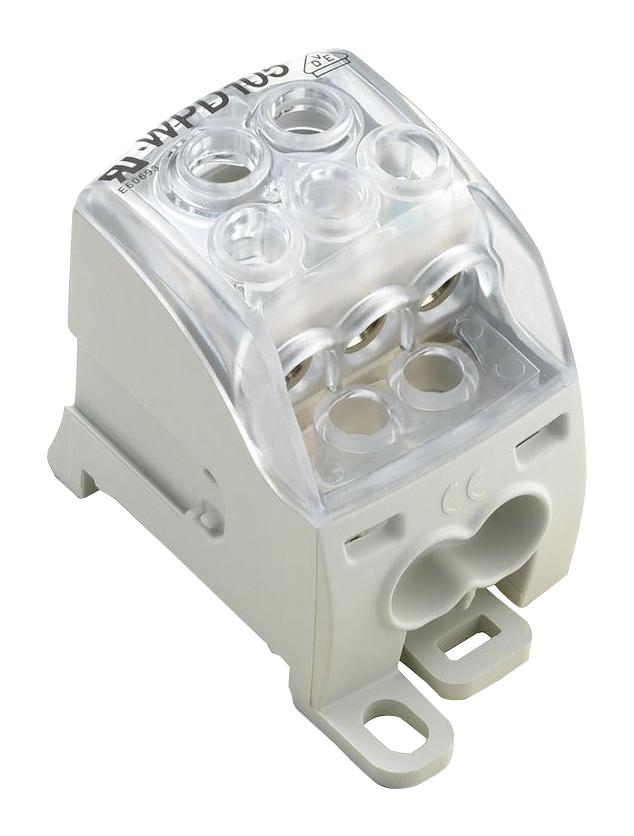

WEIDMULLER 1562170000 Power Distribution Block
The WPD 105 distribution block offers a versatile solution for power distribution with a high rated current of 125A and rated voltage of 1000V, suitable for both AC and DC applications. Constructed with light grey Wemid material and UL V-0 flammability rating, it features a screw connection system with a torque range of 2.5 to 35 Nm. The compact design measures 70 mm in height, 53.7 mm in depth, and 35.6 mm in width, and is ideal for convenient installation on terminal rails or mounting plates, supporting single potential level configurations.
WEIDMULLER 1562170000 Power Distribution Block Specifications:
- Dimensions: Width 35.6 mm, Height 70 mm, Depth 53.7 mm
- Net weight: 138g
- Material: Wemid, Light Grey, UL V-0 flammability rating
- Temperature Range: -50°C to 130°C
- Rated Voltage: 1000 V AC/DC
- Rated Current: 125A
- Connection: Screw connection with torque 2.5-35 Nm
- Number of potentials: 1
- Levels: 1
- Clamping points per level: 2
- Installation: Snap-on on terminal rail or mounting plate
- Standards: IEC 60947-7-1, UL 1059
- Certifications: UL, RoHS compliant
Buy the Buy Weidmuller Power Distribution Block Part Number 1562170000 Online
Order the Weidmuller Power Distribution Block online today to ensure secure and efficient power management in your control systems. With a rated current of 125A and voltage of 1000V, it offers versatile screw connections and a compact design measuring just 70 mm high. Made from UL V-0 flame-retardant Wemid material, it supports single potential levels and is easy to install on terminal rails or mounting plates. Perfect for industrial wiring and distribution in demanding environments.
Buy Weidmuller Part Number 1562170000 now, and experience reliable power distribution with robust screw connections for industrial applications.
Frequently Asked Questions
Where can I buy WEIDMULLER 1562170000?
You can click on the BUY or RFQ button to purchase 1562170000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1562170000?
You can download the 1562170000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1562170000?
WEIDMULLER
