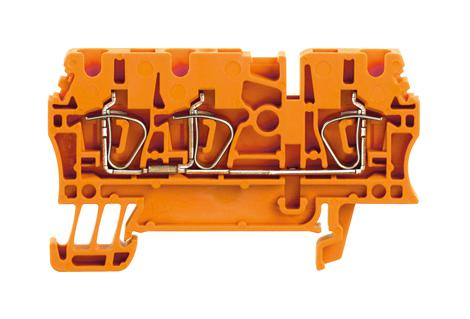

WEIDMULLER 1636790000 Tension Clamp Terminal
The ZDU 2.5/3AN OR is a high-quality tension clamp terminal designed for reliable conductor connections in industrial electrical systems. Featuring a feed-through design and an orange Wemid housing, it supports wire cross sections up to 2.5 mm², with a maximum voltage of 800V and current of 24A. Its snap-on mounting on TS 35 rails simplifies installation. Suitable for explosive environments, it complies with IECEx and ATEX standards, ensuring safety and durability in demanding conditions while offering excellent flexibility for various wiring configurations.
WEIDMULLER 1636790000 Tension Clamp Terminal Specifications:
- Width: 5.1 mm (0.201 inch)
- Height: 64.5 mm (2.539 inch)
- Depth: 38.5 mm (1.516 inch); including DIN rail: 39.5 mm
- Material: Wemid, orange color, UL 94 V-0 flammability rating
- Operating temperature range: -50°C to 120°C, storage: -25°C to 55°C
- Max voltage (ATEX): 800V, Max current (ATEX): 24A
- Max wire cross section: 2.5 mm², max wire size: 12 AWG
- Rated voltage (IEC): 550V, Rated current: 22A
- Suitable for TS 35 rail mounting, tension-clamp connection with 3 clamping points, one potential per tier
- Explosion-tested, complies with IECEx and ATEX standards, safety certifications
Buy the Weidmueller Series Z Series Tension Clamp Terminal: 1636790000
Order the Weidmueller ZDU 2.5/3AN OR tension clamp terminal online today for dependable conductor connections up to 2.5 mm², rated at 800V and 24A. Its snap-on design ensures easy installation on TS 35 rails, making it ideal for industrial environments. Certified for IECEx and ATEX standards, this terminal guarantees safety and durability in explosive or hazardous settings. Its compact size and robust construction improve wiring efficiency and operational reliability, providing an excellent solution for complex electrical systems. Purchase now for fast delivery and excellent performance
Buy Weidmueller ZDU 2.5/3AN OR now and experience unmatched reliability and performance for industrial wiring solutions.
Frequently Asked Questions
Where can I buy WEIDMULLER 1636790000?
You can click on the BUY or RFQ button to purchase 1636790000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1636790000?
You can download the 1636790000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1636790000?
WEIDMULLER
