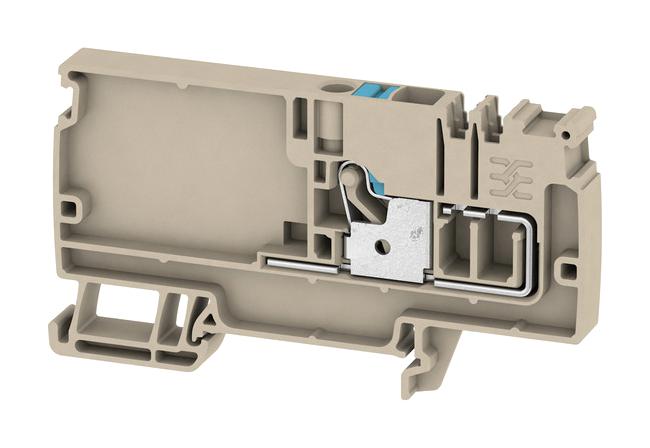

WEIDMULLER 1988130000 AAP11 6 LO BL Terminal Block

WEIDMULLER 1988130000 AAP11 6 LO BL Terminal Block Specifications:

• Type: Supply terminal
• Order No.: 1988130000
• Version: PUSH IN, 6 mm², 500 V, 41 A
• GTIN(EAN): 4050118373004
• Quantity: 20 pc(s).
• Width: 8.1 mm
• Height: 85.5 mm
• Depth: 47 mm
• Depth including DIN rail: 48 mm
• Width(inches): 0.319 inch
• Height(inches): 3.366 inch
• Depth(inches): 1.85 inch
• Net weight: 15.354 g
• Storage temperature,max.: 55 °C
• Storage temperature: -25 °C...55 °C
• Continuous operating temp., max.: 130 °C
• Storage temperature,min.: -25 °C
• Continuous operating temp.,min.: -60 °C
• Material: Wemid
• Colour of operational elements: blue
• Colour: dark beige
• UL 94 flammability rating: V-0
• Certificate No.(ATEX): TUEV17ATEX8030U
• Max. voltage(ATEX): 550 V
• Wire cross section max.(ATEX): 6 mm²
• Current(IECEX): 33 A
• Marking EN 60079-7: Ex eb II C Gb
• Certificate No.(IECEX): IECEXTUR17.0015U
• Current(ATEX): 33 A
• Max. voltage(IECEX): 550 V
• Wire cross section max.(IECEX): 6 mm²
• Ex 2014/34/EU label: II 2 G D
• Number of levels: 1
• Number of potentials per tier: 1
• PE connection: No
• N-function: No
• PEN function: No
• Number of potentials: 1
• Number of clamping points per level: 1
• Levels cross-connected internally: No
• Rail: TS 35
• PE function: No
• Installation advice: Snap-on
• Type of mounting: TS 35
• Open sides: right
• Type of fixing: Snap-on
• With snap-in pegs: No
• Certificate No.(CSA): 200039-70089609
• Current size C(CSA): 36 A
• Voltage size C(CSA): 300 V
• Wire cross section min. (CSA): 22 AWG
• Current size B(CSA): 36 A
• Voltage size B(CSA): 300 V
• Wire cross section max.(CSA): 8 AWG
• Blade size: 1.0 x 5.5 mm
• Clamping range, min.: 0.34 mm²
• Connection cross-section,stranded,min.: 0.5 mm²
• Gauge to IEC 60947-1: A5
• Strippinglength: 12 mm
• Twin wire-end ferrules,min.: 0.5 mm²
• Wire connection cross section AWG,max.: AWG 8
• Wire connection cross section, finely stranded, max.: 6 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1,min.: 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,min.: 0.5 mm²
• Wire connection cross-section, solid core, max.: 6 mm²
• Clamping range,max.: 6 mm²
• Connection cross-section, stranded,max.: 6 mm²
• Connection direction: top
• Number of connections: 1
• Twin wire-end ferrules,max.: 1.5 mm²
• Type of connection: PUSH IN
• Wire connection cross section AWG,min.: AWG 22
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1,max.: 6 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,max.: 6 mm²
• Wire connection cross-section, finely stranded, min.: 0.5 mm²
• Wire connection cross-section, solid core, min.: 0.5 mm²
• Rated cross-section: 6 mm²
• Rated current: 41 A
• Standards: In accordance with IEC 60947-7-1
• Power loss in accordance with IEC 60947-7-x: 1.31 W
• Pollution severity: 3
• Rated voltage: 500 V
• Current at maximum wires: 41 A
• Volume resistance according to IEC 60947-7-x: 0.78 mΩ
• Rated impulse withstand voltage: 6 kV
• Surge voltage category: III
• Certificate No. (cURus): E60693
• Conductor size Factory wiring min.(cURus): 22 AWG
• Conductor size Field wiringmin.(cURus): 22 AWG
• Current size C(cURus): 36 A
• Voltage size C (cURus): 300 V
• Conductor size Factory wiring max.(cURus): 8 AWG
• Conductor size Field wiring max. (cURus): 8 AWG
• Current size B(cURus): 36 A
• Voltage size B(cURus): 300 V
• ETIM 6.0: EC000897
• eClass 9.0: 27-14-11-20
• eClass 10.0: 27-14-11-20
• ETIM 7.0: EC000897
• eClass 9.1: 27-14-11-20
