WEIDMULLER 1648530000 PCB female header connector

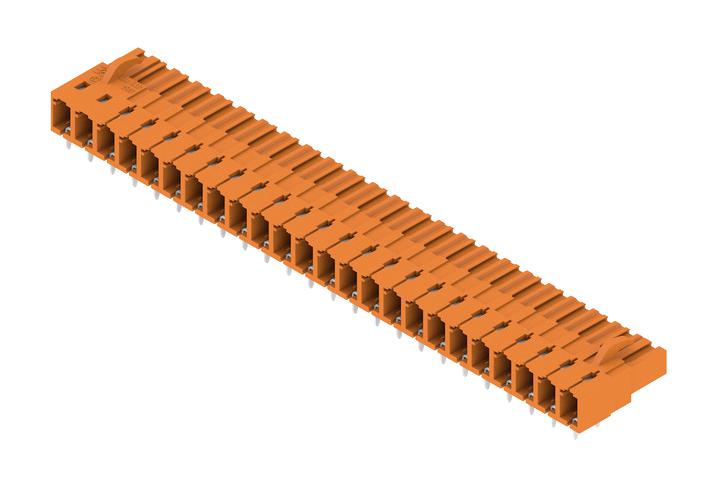

The Weidmüller BLL 5.08/24/90 3.2 SN OR BX is a PCB female header designed with 24 poles, a 5.08 mm pitch, and orange insulating material. It features THT solder connection with 3.2 mm pin length, suitable for wave soldering processes. The component complies with IEC, UL, CSA standards, offering rated currents between 10A and 23A, and voltages up to 300V. Its robust design includes tinned copper contacts, a flammability rating of V0, and a maximum operating temperature of 100°C. Ideal for industrial PCB connections, it supports 25 plugging cycles and is coded for system safety and reliability.
WEIDMULLER 1648530000 PCB female header connector Specifications:
- Number of poles: 24
- Pitch: 5.08 mm (0.2 inch)
- Solder pin length: 3.2 mm (+0.1/-0.3 mm)
- Solder pin dimensions: 0.4 x 1.00 mm
- Solder eyelet diameter: 1.3 mm (+0.1 mm)
- Material: PBT GF, orange color, UL 94 V0 flammability rating
- Contact material: Tinned copper alloy
- Operating temperature: -50°C to 100°C
- Rated current: 23A (IEC), 15A (UL/CSA)
- Rated voltage: 300V (IEC, UL, CSA)
- Number of solder pins per pole: 2
- Plugging cycles: 25
- Insulation resistance: >200 MΩ
- Protection class: Touch-safe acc. to DIN VDE
- Max working voltage: 300V
- Dimensions: Length 116.84 mm (4.6 inches), width and height as per datasheet
- Flammability: V0, GWFI 960°C
- Storage conditions: -40°C to 70°C, max humidity 70%
Buy the Weidmueller BLL 5.08/24/90 3.2 SN OR BX – Reliable PCB Header for Industrial Applications
Purchase the Weidmueller BLL 5.08/24/90 3.2 SN OR BX today to ensure secure and reliable PCB connections in your industrial automation projects. This high-quality female header features 24 poles with 5.08 mm pitch, tinned copper contacts for optimal conductivity, and robust THT solder connection suitable for wave soldering. Its orange ignition-resistant housing, rated up to 23A and 300V, guarantees safety and long-lasting performance. Support your manufacturing needs with this durable, system-coded connector available for online ordering now.
Get Weidmueller BLL 5.08/24/90 3.2 SN OR BX today—designed for durability, safety, and precision in industrial PCB connections.
