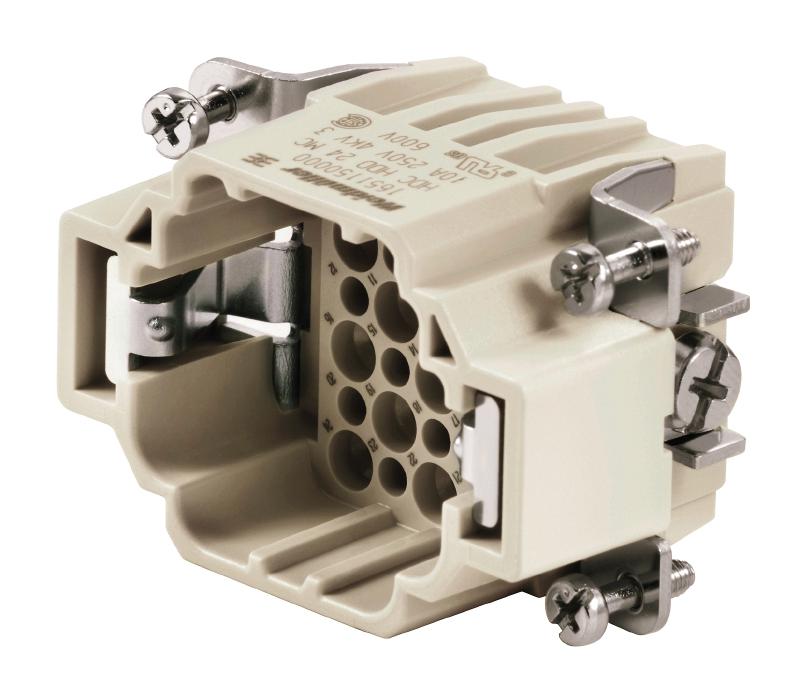

WEIDMULLER 1651150000 HDC HDD 24 MC Insert
The Weidmuller HDC HDD 24 MC insert is a robust solution for connecting multiple wires in compact environments. Designed with machined crimp contacts, this insert allows for high pole counts without sacrificing space. The crimp connection method ensures a secure and long-lasting electrical connection. Ideal for applications requiring a high density of connections, such as industrial machinery, control panels, and automation systems, the HDC HDD 24 MC insert offers a reliable and efficient solution for power and signal transmission. It is compatible with a wide range of wire gauges and supports both solid and stranded conductors.
WEIDMULLER 1651150000 HDC HDD 24 MC Insert Specifications:
- Number of poles: 24
- Rated current: 10 A
- Rated voltage: 250 V
- Nominal voltage acc. to UL/CSA: 600 V AC/DC
- Width: 34 mm
- Width(inches): 1.339 inch
- Height: 35 mm
- Height(inches): 1.378 inch
- Depth: 51 mm
- Depth(inches): 2.008 inch
- Net weight: 40 g
- Limit temperature: -40 °C ... 125 °C
- REACH SVHC: Potassium perfluorobutane sulfonate 29420-49-3
- Height of plug: 35 mm
- Total length base: 51 mm
- Insulating material: PC glass-fibre reinforced
- Insulating material group: IIIa
- Insulation strength: 1010Ω
- Pluggingcycles, gold: ≥ 500
- Pluggingcycles, silver: ≥ 500
- Pollution severity: 3
- Rated impulse voltage(DIN EN 61984): 4 kV
- Series: HDD
- Size: 3
- Type: Pin
- UL 94 flammability rating: V-0
- Conductor cross-section: 2.5 mm²
- Volume resistance: ≤ 4mΩ
- Wire connection cross section AWG, max.: AWG 14
- Wire connection cross section, finely stranded, max.: 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm²
- Wire cross-section, solid, max.: 2.5 mm²
- Blade size,crosshead size PZ1: Connection type PE Screw connection Rated cross-section 2.5 mm² Tighteningtorque,max. PE connection 1.5 Nm Wire connection cross section, finely stranded, max. 2.5 mm² Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,min. 0.5 mm² Wire cross section,AWG(PE),max. AWG 14 Wire cross-section, solid, max. 2.5 mm²
- Blade size,slotted(PE connection): SD 0.6 x 3.5,SD 0.8 x 4.0
- Strippinglength PE connection: 10 mm
- Tighteningtorque,min. PE connection: 1.2 Nm
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,max.: 2.5 mm²
- Wire connection cross-section, finely stranded, min.: 0.5 mm²
- Wire cross section,AWG(PE),min.: AWG 20
- Wire cross-section, solid, min.: 0.5 mm²
- ETIM 6.0: EC000438
- eClass 9.0: 27-44-02-05
- eClass 10.0: 27-44-02-05
- ETIM 7.0: EC000438
- eClass 9.1: 27-44-02-05
- UNSPSC: 30-21-18-01
