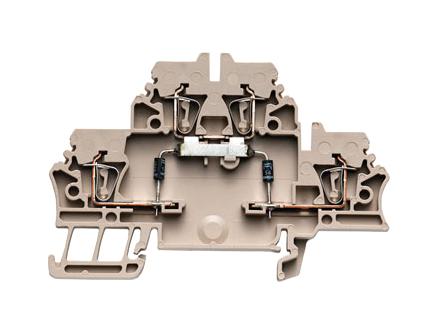

WEIDMULLER 1690040000 double-tier terminal block
The ZDK 2.5/D/4 is a versatile double-tier component terminal with tension clamp technology, suitable for all common conductor connections, offering high flexibility and secure wiring. Made from flame-retardant Wemid material with a dark beige color, it features a compact design with dimensions of 5.1 mm in width, 79.1 mm in height, and 53 mm in depth. It supports a rated cross-section of 2.5 mm², operates within -50°C to 120°C, and is CSA and UL certified, making it ideal for industrial electrical applications requiring reliable connections and easy mounting.
WEIDMULLER 1690040000 double-tier terminal block Specifications:
- Width: 5.1 mm (0.201 inch)
- Height: 79.1 mm (3.114 inch)
- Depth: 53 mm (2.087 inch)
- Material: Wemid, dark beige, UL 94 V-0 rated
- Rated cross-section: 2.5 mm²
- Operating temperature: -50°C to 120°C
- Storage temperature: -25°C to 55°C
- Number of potentials: 1
- Levels: 2
- Clamping points per level: 2
- Connection type: Tension-clamp
- Wire connection: Flexible, stranded, solid, min. 0.5 mm², max. 2.5 mm²
- Rated voltage: 500 V
- Rated current: 10 A
- Certifications: UL (Conductor max 14 AWG), CSA (max 14 AWG), CE, RoHS
- Explosion-tested: Yes
- Dimension of blade: 0.6 x 3.5 mm
- Clamp range: 0.05 mm to 2.5 mm
- Number of connections: 4
- Max wire size (factory wiring): 14 AWG
- Max wire size (field wiring): 14 AWG
- Max conductor cross-section: 2.5 mm²
Buy the Buy Weidmueller ZDK 2.5/D/4 Part Number 1690040000 Online
Purchase the Weidmueller ZDK 2.5/D/4 terminal block online today and benefit from its durable construction, easy snap-on mounting, and secure tension clamp technology. Designed for industrial wiring, it supports conductor sizes from 0.5 mm² to 2.5 mm² and provides a rated voltage of 500 V with a current capacity of 10A. Its compact dimensions ensure efficient use of space, making it suitable for complex electrical systems. Shop now and ensure reliable, high-quality connections for your projects.
Order your Weidmueller Series ZDK 2.5/D/4 terminal today and enhance your electrical installations with its reliable tension clamp connection technology.
