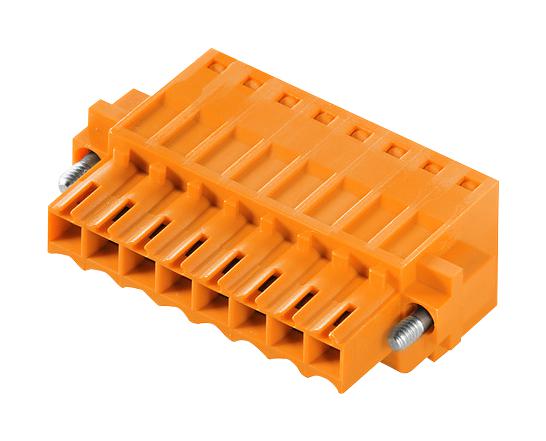

WEIDMULLER 1690890000 Cable Connector
These female connectors with tension clamp system are designed for quick, secure cable connections in 3.50 mm pitch wiring systems. They feature space for labeling, can be coded, and are suitable for PCB plug-in applications with a maximum current of 14.5 A at 320 V. Their robust construction includes a copper alloy contact surface, tin plating, and insulation made of durable PBT material. Rated for temperatures from -60°C to 100°C, they are ideal for automation, control, and electrical distribution in industrial settings. Easy wiring and high safety standards make these connectors a reliable choice for complex wiring tasks.
WEIDMULLER 1690890000 Cable Connector Specifications:
- Pitch: 3.50 mm (0.138 inch)
- Number of poles: 3
- Rated current: 14.5 A (IEC), 10 A (UL/CSA)
- Rated voltage: 320 V (IEC), 300 V (UL/CSA)
- Clamping range: 0.13 mm to 1.5 mm
- Wire cross-section: AWG 26 to AWG 14
- Material: Copper alloy, tin-plated
- Insulating material: PBT, orange color
- Flammability rating: UL 94 V-0
- Operating temperature: -60°C to 100°C
- Storage temperature: -25°C to 55°C
- Humidity: Max 80% RH during storage
- IP rating: IP20
- Touch-safe protection: DIN VDE 57 106
- Tightening torque: 0.2 Nm to 0.25 Nm
- Plugging cycles: 25
Buy the Weidmueller Series BL/SL Cable Connector: BLZF 3.50/03/180F SN OR BX
Secure your electrical connections with Weidmueller's high-quality female connectors featuring tension clamp systems for quick, reliable wiring in industrial automation setups. Designed for PCB plug-in applications, these connectors accommodate cable cross-sections from AWG 26 to AWG 14, supporting currents up to 14.5 A at 320 V. Made with durable copper alloy contacts and flame-retardant PBT insulators, they ensure safety, durability, and ease of installation in temperatures ranging from -60°C to 100°C. Perfect for control panels, automation, and power distribution systems, these connectors simplify complex wiring tasks effectively.
Buy Weidmueller BLZF 3.50/03/180F SN OR BX now and experience unmatched reliability and performance for secure industrial wiring.
Frequently Asked Questions
Where can I buy WEIDMULLER 1690890000?
You can click on the BUY or RFQ button to purchase 1690890000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1690890000?
You can download the 1690890000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1690890000?
WEIDMULLER
