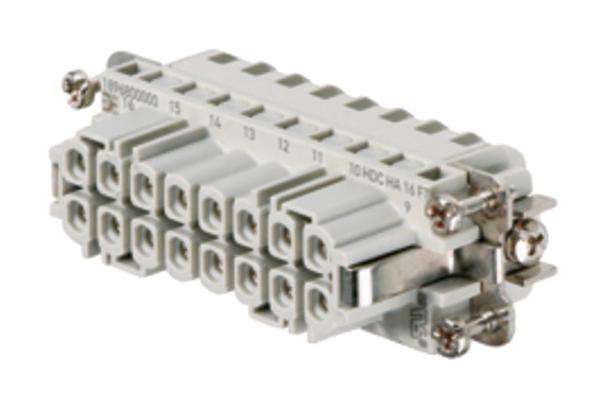

WEIDMULLER 1896800000 Female Connector
The HDC HA 16 FT is a compact female connector suitable for space-constrained applications. It features a tension-clamp connection for a secure, maintenance-free, vibration-proof, and permanent wiring. Made from copper alloy with a silver passivated surface, it supports a rated current of 16A and voltage of 250V, with a robust design rated for up to 500 plugging cycles. Its dimensions include a width of 23mm, height of 31.1mm, and depth of 73mm, making it ideal for reliable electrical connections in various industrial settings.
WEIDMULLER 1896800000 Female Connector Specifications:
- Width: 23mm (0.906 inch)
- Height: 31.1mm (1.224 inch)
- Depth: 73mm (2.874 inch)
- Net weight: 618g
- Rated current: 16A
- Rated voltage: 250V (DIN EN 61984), 600V AC/DC (UL/CSA)
- Number of poles: 16
- Material: Copper alloy, silver passivated
- Connection type: Tension-clamp, screw connection M4
- Insulation material: PC glass-fibre reinforced
- Wire cross-section: max. 2.5mm² (AWG 14), min. 0.5mm² (AWG 20)
- Temperature range: 40°C to 125°C
- Pollution severity: 3
- UL flammability rating: V-0
- Insulation strength: 109 kΩ
- Volume resistance: <2 MΩ
- Protection: IP20 (not specified), approvals conform to RoHS
Buy the Buy Weidmueller HDC HA 16 FT Part Number 1896800000 Online
Purchase the Weidmueller HDC HA 16 FT female connector online today and enjoy a secure, maintenance-free wiring solution with a robust tension-clamp connection. Designed for space-efficient applications, this connector supports 16A current and up to 250V, making it ideal for industrial environments demanding reliable performance. Its copper alloy construction with silver passivation guarantees durability, while its compact dimensions of 23mm width, 31.1mm height, and 73mm depth facilitate easy installation. Order now to ensure dependable, vibration-proof electrical connections for your projects.
Order your Weidmueller Series 16 Pole HDC HA 16 FT today and ensure reliable, vibration-proof electrical connections in your industrial projects.
Frequently Asked Questions
Where can I buy WEIDMULLER 1896800000?
You can click on the BUY or RFQ button to purchase 1896800000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1896800000?
You can download the 1896800000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1896800000?
WEIDMULLER
