WEIDMULLER 1712520000 HDC Connector Kit

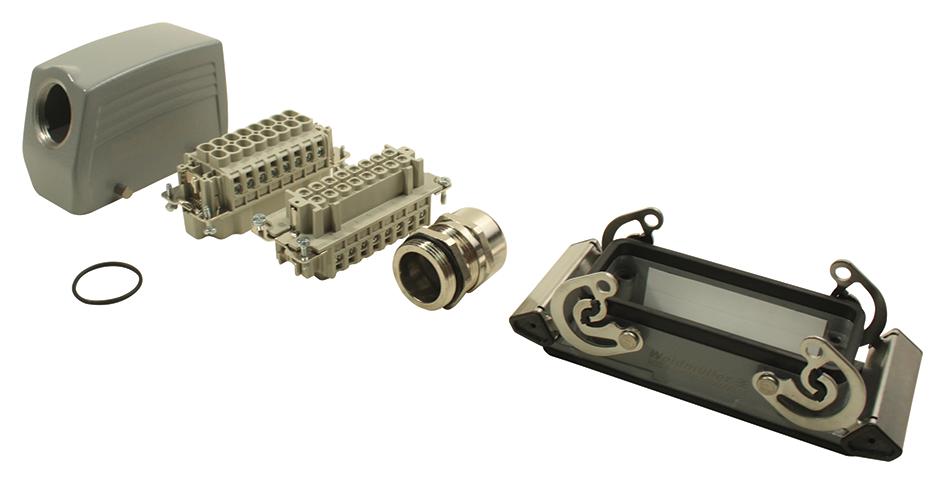

The WEIDMULLER HDC-KIT-HE 16.120 provides a complete solution for assembling heavy-duty connectors. These kits are designed for reliable connections in demanding industrial environments. The kit typically includes a male insert, female insert, plug housing, bulkhead housing, and cable gland, ensuring a fully integrated connector assembly. Features include a screw connection design with wire protection springs and a robust diecast aluminum housing, making it suitable for various applications requiring secure and durable connections.
WEIDMULLER 1712520000 HDC Connector Kit Specifications:
- Type: HDC-KIT-HE 16.120
- Order No.: 1712520000
- Version: RockStar® HDC kits-Heavy Duty Connectors, Kit, HE, Size: 6, Poles: 16, Screw connection, 500 V, 16 A, diecast aluminium, PG 21
- GTIN(EAN): 4008190947743
- Quantity: 1 pc(s).
- Net weight: 626.68 g
- Limit temperature: -40 °C ... 100 °C
- Cablegland: PG 21
- Material: diecast aluminium
- Rated current: 16 A
- Series: HE
- Connection type PE: Screw connection
- No. of poles: 16
- Rated voltage: 500 V
- Size: 6
- Conductor cross-section, max.: 2.5 mm²
- Conductor cross-section, min.: 0.5 mm²
- Min. torque for main contact: 0.5 Nm
- Max. torque for main contact: 0.55 Nm
- Surface finish: Powder coating
- Type of connection: Screw connection
- ETIM 3.0: EC000437
- ETIM 5.0: EC000437
- UNSPSC: 30-21-18-01
- eClass 6.2: 27-26-07-03
- eClass 8.1: 27-44-05-15
- eClass 9.1: 27-44-01-01
- ETIM 4.0: EC000437
- ETIM 6.0: EC002636
- eClass 5.1: 27-14-34-19
- eClass 7.1: 27-44-05-15
- eClass 9.0: 27-44-05-15
- Descriptive text ordering data: Metal housing
- Approvals: ROHS Conform
