WEIDMULLER 2617850000 industrial relay module
The TERMSERIES relay module features a complete assembly with a relay and a base, adaptable for AC/DC/UC coils. It is available in various configurations, including screw and tension-clamp connections, with optional multi-voltage input from 24 to 230 V UC and protective circuits like rectifiers and RC filters. Equipped with an illuminated ejection lever, it handles a rated control voltage of 230 V AC ±10%, with a continuous current capacity of 6 A. Suitable for industrial automation, it ensures durability with a mechanical service life of 50 million cycles and conforms to UL and EN standards, offering reliable switching performance for demanding applications.
WEIDMULLER 2617850000 industrial relay module Specifications:
- Dimensions: Width 6.4 mm, Height 89.4 mm, Depth 87.8 mm
- Weight: 309 g
- Operating temperature: -40°C to 60°C, Storage: -40°C to 85°C
- Relative humidity: 5-95%
- Control voltage: 230 V AC ±10%, Rated current: 8.8 mA
- Pull-in voltage: typ. 169 V, Drop-out voltage: typ. 85 V
- Coil Power: 2 VA
- Output: Rated switching voltage 250 VAC/DC, 6A max.
- Inrush Current: 30A / 20 ms
- Contact type: 1 CO AgSnO, Mechanical life: 50 million cycles
- Connection: Push-in, Stripping length 8 mm, Cross-section AWG 26-14
- Protection degree: IP20, Pollution severity level 2
- Dielectric strength: 4 kV (input/output), Impulse withstand voltage: 6 kV

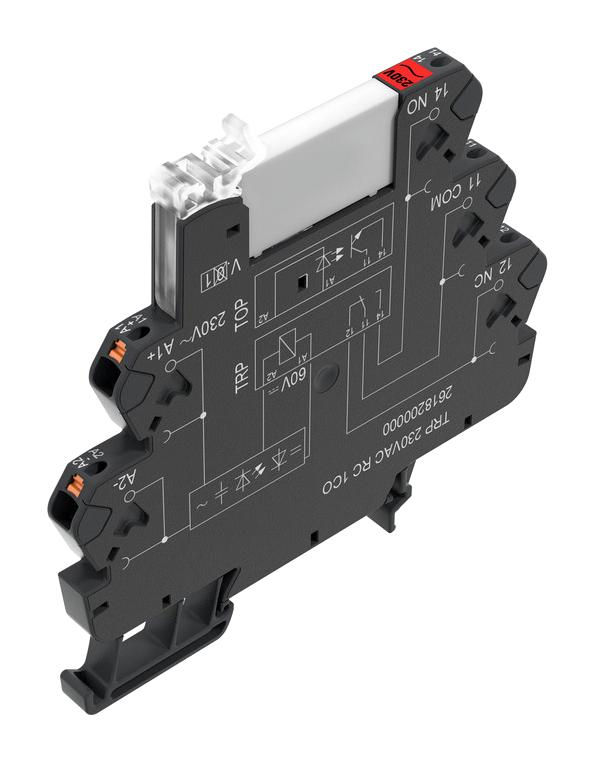

Buy the Weidmueller TRP 230VAC RC 1CO AGSNO – Reliable Relay for Industrial Applications
Secure your automation system today by purchasing the Weidmueller relay module online. This reliable relay features a control voltage of 230 V AC, a switching capacity of 6 A, illuminated ejection lever, and versatile connection options. Designed for industrial environments, it ensures durability and efficient switching performance. Perfect for automation control circuits, its robust construction and compliance with UL and EN standards make it an excellent choice for demanding applications. Order now to enhance your control system's dependability and operational efficiency.
Buy Weidmueller TRP 230VAC RC 1CO AGSNO now and experience unmatched reliability and performance for your automation needs.
Frequently Asked Questions
Where can I buy WEIDMULLER 2617850000?
You can click on the BUY or RFQ button to purchase 2617850000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2617850000?
You can download the 2617850000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2617850000?
WEIDMULLER
