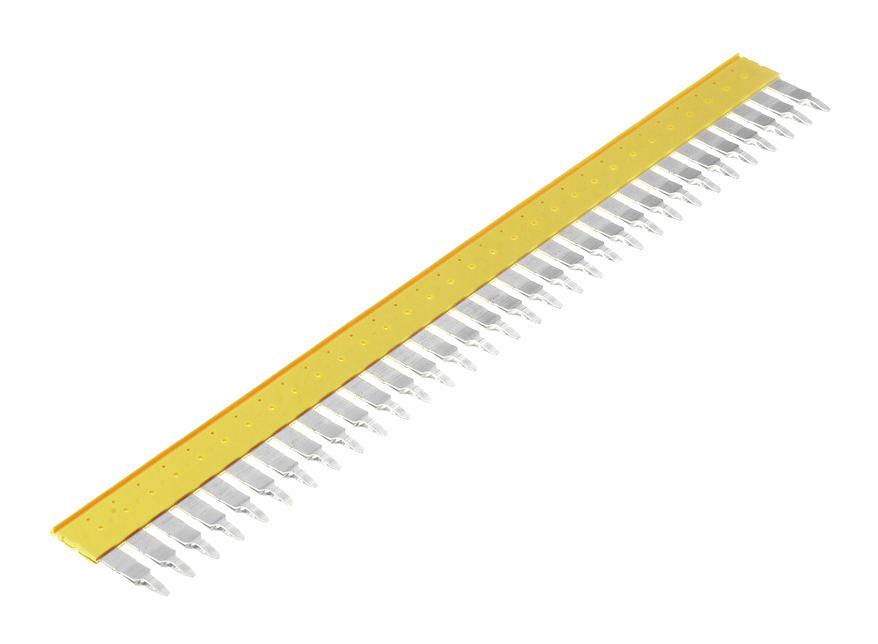

WEIDMULLER 1733640000 Cross-connector Terminal Block
The WEIDMULLER ZQV 6/32 GE is a cross-connector terminal block designed with tension clamp technology, providing a universal contact system adaptable to various conductor connection types. This innovative design offers exceptional flexibility, making it a profitable alternative connection method. Suitable for a wide range of industrial applications, it's rated for 41A and features a pitch of 8.1mm. Note that it is not finger-safe and not suitable for ATEX use, and breakout of contact elements is limited to 60% to maintain stability and temperature considerations. The usage of cross connectors reduces the rated voltage to 400V, and to 25V if cut cross connection with blank cut edges are used.
WEIDMULLER 1733640000 Cross-connector Terminal Block Specifications:
- Type: ZQV 6/32 GE
- Order No.: 1733640000
- Version: Accessories, Cross-connector, 41 A
- GTIN(EAN): 4008190994334
- Quantity: 10 pc(s).
- Width: 3.1 mm
- Height: 257.3 mm
- Depth: 33.96 mm
- Net weight: 45.6 g
- Width(inches): 0.122 inch
- Height(inches): 10.13 inch
- Depth(inches): 1.337 inch
- Storage temperature, max: 55 °C
- Storage temperature: -25 °C...55 °C
- Continuous operating temp., max: 130 °C
- Storage temperature, min: -25 °C
- Continuous operating temp., min: -60 °C
- Material: Wemid
- UL 94 flammability rating: V-0
- Colour: yellow
- Installation advice: Direct mounting
- Type of fixing: Plugged
- Pitch in mm (P): 8.1 mm
- Rated current: 41 A
- ETIM 6.0: EC000489
- eClass 9.0: 27-14-11-40
- eClass 10.0: 27-14-11-40
- ETIM 7.0: EC000489
- eClass 9.1: 27-14-11-40
- UNSPSC: 30-21-18-01
- Product information: Attention: not finger-safe; not suitable for ATEX use; breakout of contact elements limited to 60%; reduces rated voltage to 400V; to 25V if cut cross connection with blank cut edges are used
