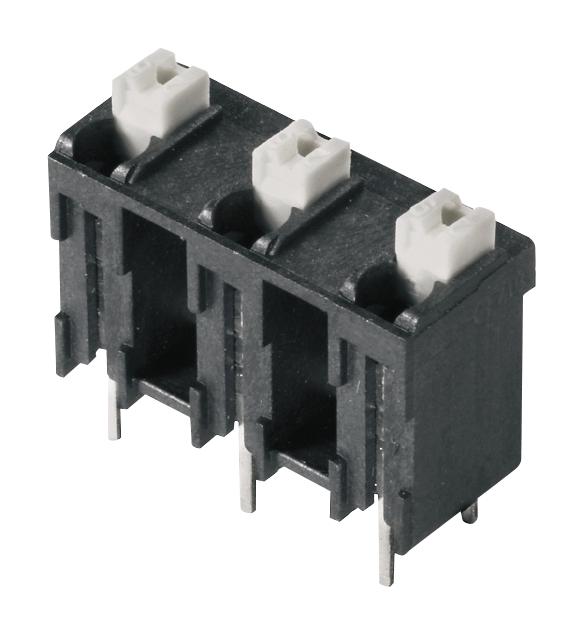

WEIDMULLER 1826140000 PCB Terminal
The Weidmueller OMNIMATE Signal series LSF PCB terminal is designed for fully automatic SMT assembly, featuring Push In conductor connection for quick, reliable wiring. It accommodates conductor sizes from 0.2 mm to 1.5 mm or AWG 28 to AWG 14, with rated voltages of up to 800 V (IEC) and 300 V (UL). Rated currents are 17.5 A (IEC) and 12 A (UL). The terminal has a pitch of 7.5mm, a solder pin length of 3.5mm, and robust contact and insulation materials, ensuring safe, efficient PCB connections in automation and control applications.
WEIDMULLER 1826140000 PCB Terminal Specifications:
- Pitch: 7.5 mm
- Number of poles: 3
- Solder pin length: 3.5 mm
- Rated voltage: IEC 800 V, UL 300 V
- Rated current: IEC 17.5 A, UL 12 A
- Clamping range: 0.2 mm to 1.5 mm
- Wire size: AWG 28 to AWG 14
- Material: LCP GF, copper alloy contact
- Flammability rating: UL 94 V0
- Operating temperature: -60°C to 120°C
- Insulation resistance: 210 MΩ
- Contact dimensions: 0.35 x 0.8 mm
- Eyelet hole diameter: 11 mm
- Touch-safe protection: IP20
- RoHS compliant, conforming to IPC standards
Buy the Weidmueller Series LSF PCB Terminal: 1826140000
Order the Weidmueller PCB terminal from our online store today to ensure fast, secure connections in your automation projects. This reliable terminal features Push In technology for quick assembly, high voltage and current ratings, and quality materials that guarantee durability and safety. Whether for bulk manufacturing or small-scale assemblies, this product is designed to meet IEC and UL standards, providing precise, stable, and maintenance-free wire connections for control panels, industrial equipment, and automation systems.
Buy Weidmueller 1826140000 now and experience unmatched reliability and performance in automated PCB wiring solutions.
Frequently Asked Questions
Where can I buy WEIDMULLER 1826140000?
You can click on the BUY or RFQ button to purchase 1826140000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1826140000?
You can download the 1826140000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1826140000?
WEIDMULLER
